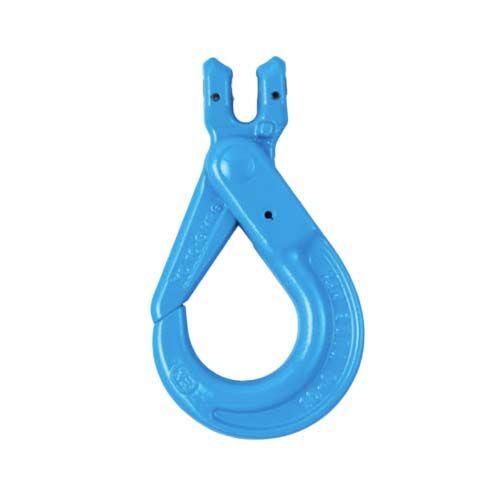

Yoke G100 Self Lock Hook Clevis 13mm - 180513

Description

Yoke G100 Clevis Self Lock Hook

Quenched and Tempered Alloy Steel.
At least 25% greater WLL than traditional GSO products.
Manufactured in accordance with EN 1677- 3 and ASME 830.26, ASME 830.10, PAS1061.
Certified by OGUV GS-OA-15-05.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
Design Factor 4:1.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Tempering temperature minimum 400°C.
Magnaflux crack detection is performed 100% on each batch.

Specifications

AIMS SKU A0208448

Brand Yoke

Model Number 180513

Barcode Number 4713037058581

Chain Size (mm) 13

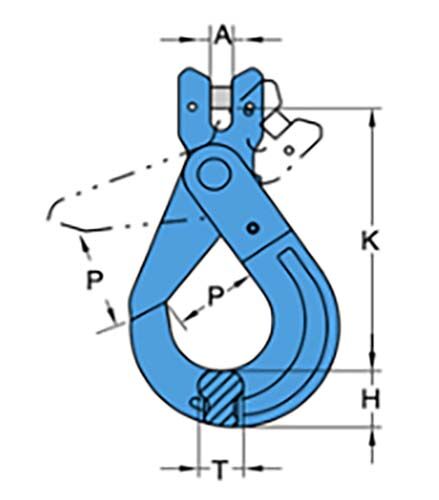

Dimension A (mm) 15

Dimension H (mm) 39

Weight (kgs) 3

WLL 6.7 T

Dimension K (mm) 178

Dimension P (mm) 52

Dimension T (mm) 30

Type Clevis Self Lock Hook
Grade G100
