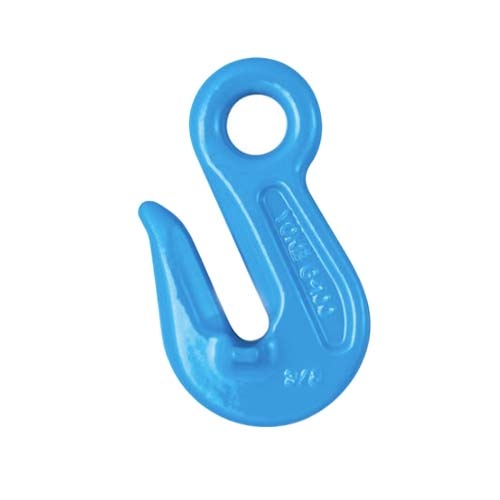

Yoke G100 Eye Grab Hook

Description

Yoke G100 Eye Grab Hook

Quenched and Tempered Alloy Steel.
At least 25% greater WLL than traditional GSO products.
Manufactured in accordance with DIN 5692, EN 1677-1and ASTMA952/A 952M.
Certified by OGUV GS-M0-15-05.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
Design Factor 4:1.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Tempering temperature minimum 400°C.
Not for use with Omega link.
Enables full WLL while in use,thanks to supporting wings which prevent chain link deformation.

Specifications

AIMS SKU A0208413

Brand Yoke

Model Number 180408

Barcode Number 4713037058925

Chain Size (mm) 7/8

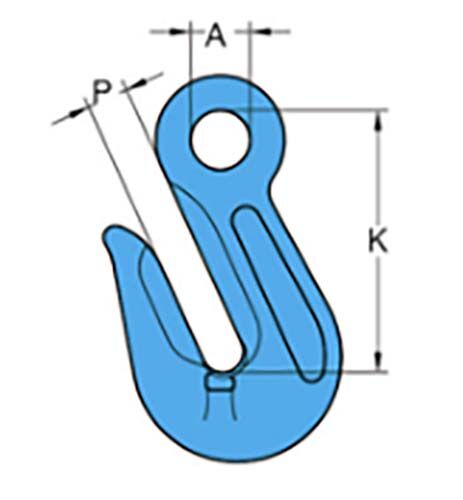

Dimension A (mm) 16

Dimension B (mm) 10

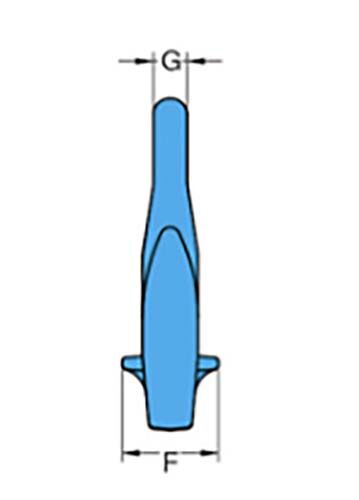

Dimension F (mm) 30

Dimension G (mm) 9

Weight (kgs) 0.3

WLL 2.5 T

Dimension K (mm) 62

Dimension P (mm) 10

Type Eye Grab Hook
Grade G100
