Yoke G100 Shortening Clutch Clevis Type Safety Pin 7/8mm - 181208

Description

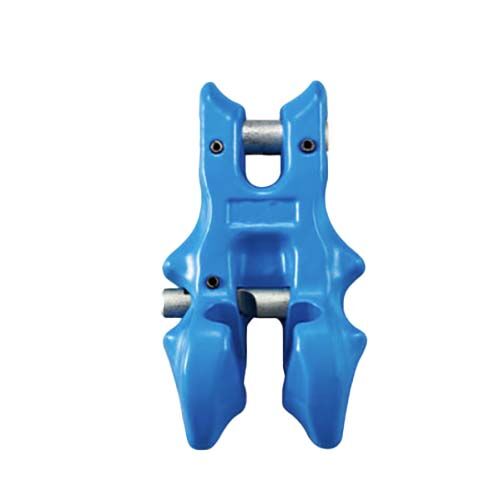

Yoke G100 Clevis Shortening Clutch Clevis W/ Safety Pin

Quenched and Tempered Alloy Steel.
At least 25% greater WLL than traditional G80 products.
Manufactured in accordance with EN 1677- 1 and ASME 830.26.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
Design Factor 4:1.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Tempering temperature minimum 400°C.
he use of Clevis Clutch still allows 100% of the chain sling capacity.

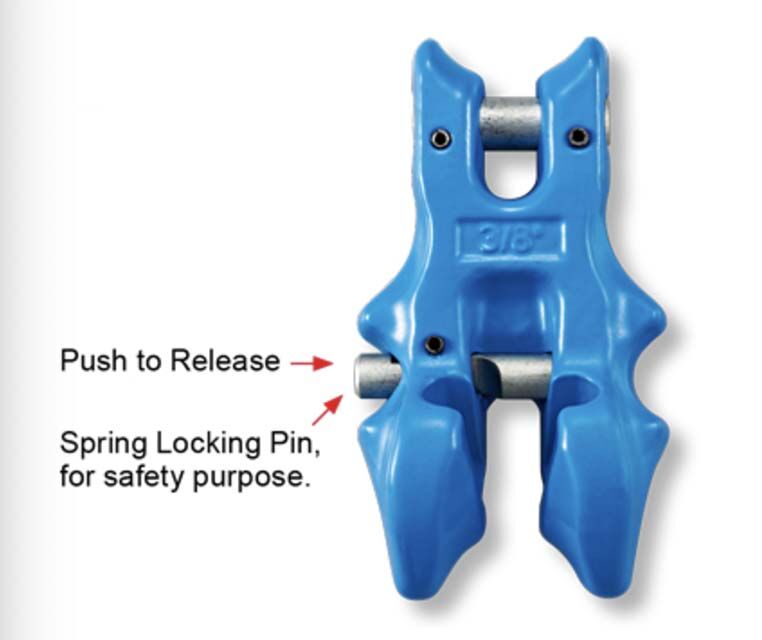

With the locking system and spring locking pin design to enhance security and prevent the chains from disengaging.

Specifications

AIMS SKU A0208460

Brand Yoke

Model Number 181208

Barcode Number 4713037079135

Chain Size (mm) 7/8

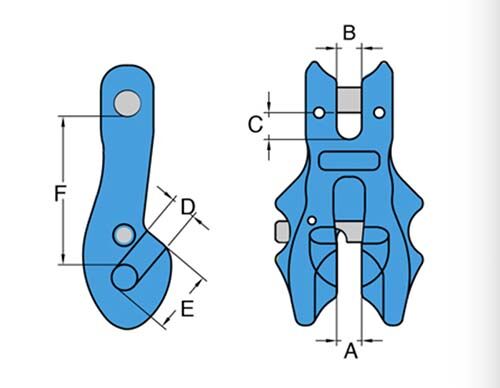

Dimension A (mm) 10

Dimension B (mm) 10

Dimension C (mm) 10

Dimension D (mm) 10

Dimension E (mm) 24

Dimension F (mm) 58

Weight (kgs) 0.5

WLL 2.5 T

Type Clevis Shortening Clutch
Grade G100
