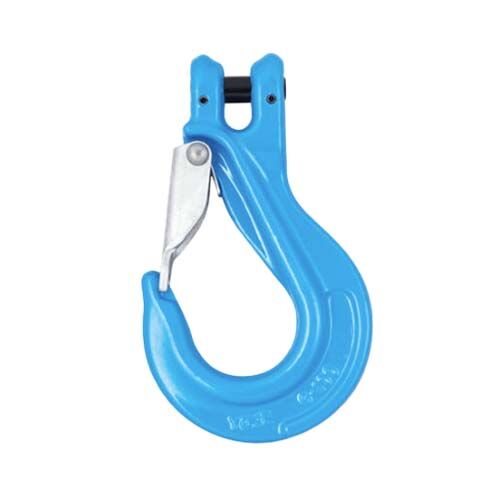

Yoke G100 Clevis Sling Hook With Latch

Description

Yoke G100 Clevis Sling Hook With Latch

Quenched and Tempered Alloy Steel.
At least 25% greater WLL than traditional G80 products.
Manufactured in accordance with EN 1677- 2 and ASME 830.26, ASME 830.10, PAS1061.
Certified by DGUV GS-OA-15-05.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
Design Factor 4:1.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Tempering temperature minimum 400°C.
Magnaflux crack detection is performed 100% on each batch.

Specifications

AIMS SKU A0208465

Brand Yoke

Model Number 180808

Barcode Number 4713037060676

Chain Size (mm) 7/8

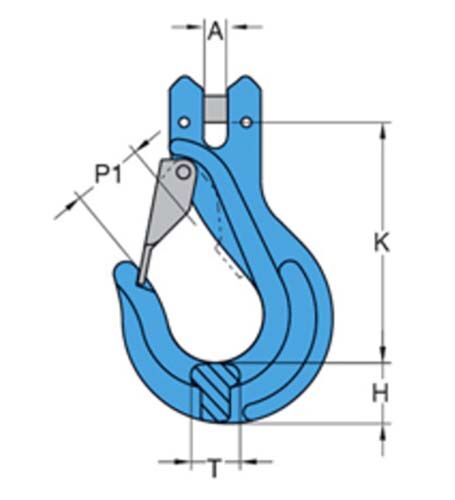

Dimension A (mm) 9

Dimension H (mm) 22

Weight (kgs) 0.6

WLL 2.5 T

Dimension K (mm) 98

Dimension T (mm) 18

Dimension P1 (mm) 27

Type Clevis Sling Hook
Grade G100
