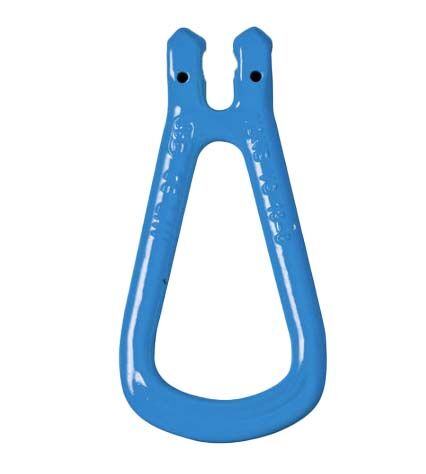

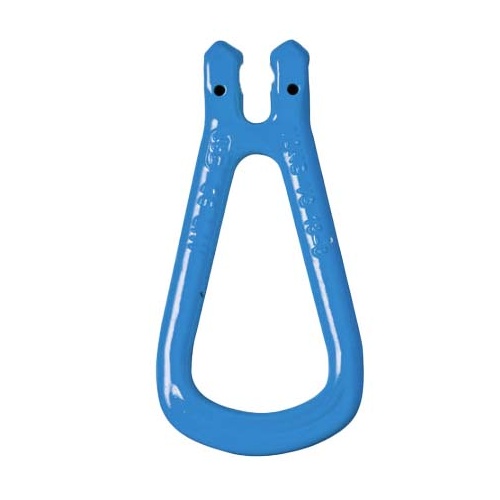

Yoke G100 Clevis End Pin Lock

Description

Yoke G100 Clevis End Pin Lock

Quenched and Tempered Alloy Steel.
At least 25% greater WLL than traditionalGSO products.
Manufactured in accordance with EN 1677- 1and ASME 830.26.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
Design Factor 4:1.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Tempering temperature minimum 400°C.
Magnaflux crack detection is performed 100% on each batch.

Specifications

AIMS SKU A0208444

Brand Yoke

Model Number 182816

Chain Size (mm) 16

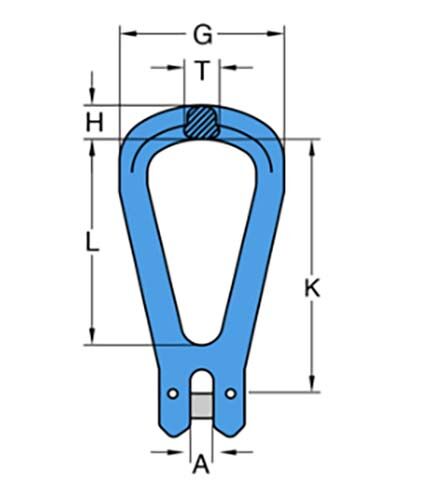

Dimension A (mm) 18

Dimension G (mm) 124

Dimension H (mm) 26

Weight (kgs) 2.4

Dimension L (mm) 165

WLL 10 T

Dimension K (mm) 203

Dimension T (mm) 27

Type Clevis End Pin Lock
Grade G100
