Yoke G100 Swivel Ball Bearing Self Locking Hook 20mm - 183720

Description

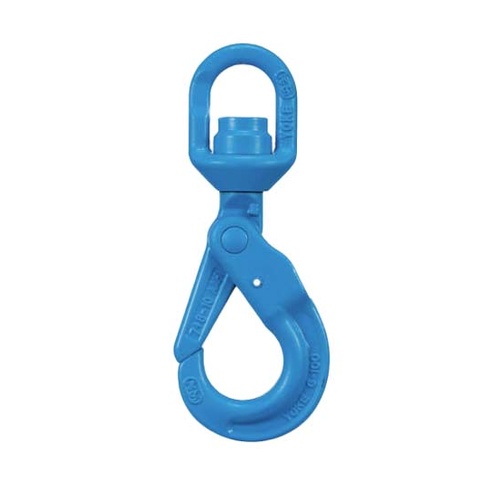

Yoke G100 Swivel Ball Bearing Self Locking Hook

Quenched and Tempered Alloy Steel.
At least 25% greater WLL than traditional G80 products.
Manufactured in accordance with EN 1677- 3 and ASME 830.26, ASME 830.10, PAS1061.
Certified by DGUV GS-OA-15-05.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
Design Factor 4:1.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Tempering temperature minimum 400°C.
Magnaflux crack detection is performed 100% on each batch.
Built with ball bearing and enables full swivel feature under load.

Specifications

AIMS SKU A0208485

Brand Yoke

Model Number 183720

Barcode Number 4713037058758

Chain Size (mm) 20

Dimension A (mm) 74

Dimension B (mm) 82

Dimension D (mm) 25

Dimension H (mm) 65

Weight (kgs) 13

WLL 16 T

Dimension K (mm) 403

Dimension P (mm) 70

Dimension T (mm) 53

Type Swivel Ball Bearing Self Locking Hook
Grade G100
