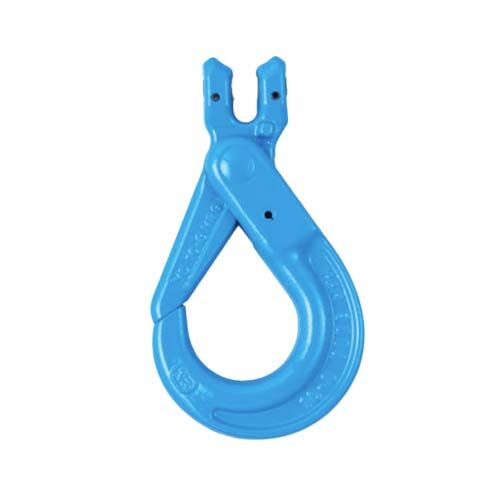

Yoke G100 Self Lock Hook Clevis 16mm - 180516

Description

Yoke G100 Clevis Self Lock Hook

Quenched and Tempered Alloy Steel.
At least 25% greater WLL than traditional GSO products.
Manufactured in accordance with EN 1677- 3 and ASME 830.26, ASME 830.10, PAS1061.
Certified by OGUV GS-OA-15-05.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
Design Factor 4:1.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Tempering temperature minimum 400°C.
Magnaflux crack detection is performed 100% on each batch.

Specifications

AIMS SKU A0208449

Brand Yoke

Model Number 180516

Barcode Number 4713037058598

Chain Size (mm) 16

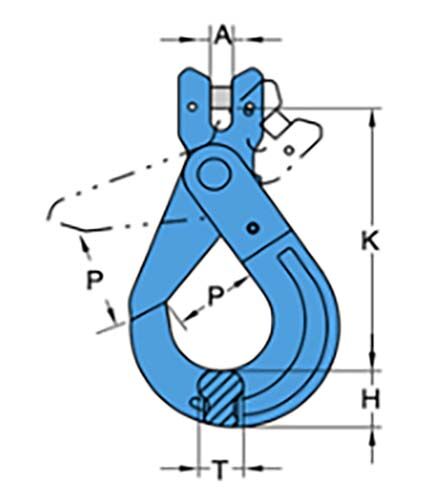

Dimension A (mm) 18

Dimension H (mm) 49

Weight (kgs) 5

WLL 10 T

Dimension K (mm) 213

Dimension P (mm) 60

Dimension T (mm) 36

Type Clevis Self Locking Hook
Grade G100
