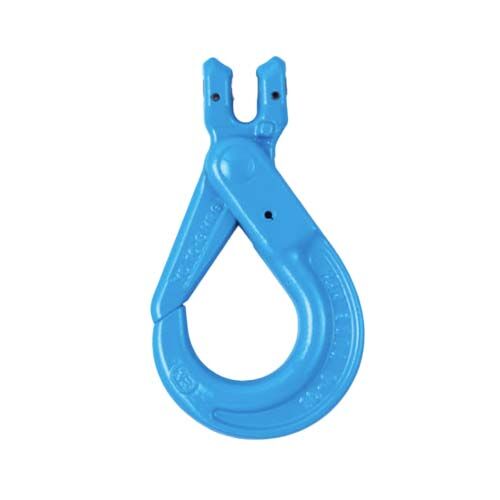

Yoke G100 Clevis Self Lock Hook

Description

Yoke G100 Clevis Self Lock Hook

Quenched and Tempered Alloy Steel.
At least 25% greater WLL than traditional GSO products.
Manufactured in accordance with EN 1677- 3 and ASME 830.26, ASME 830.10, PAS1061.
Certified by OGUV GS-OA-15-05.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
Design Factor 4:1.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Tempering temperature minimum 400°C.
Magnaflux crack detection is performed 100% on each batch.

Specifications

AIMS SKU A0208446

Brand Yoke

Model Number 180508

Barcode Number 4713037058567

Chain Size (mm) 7/8

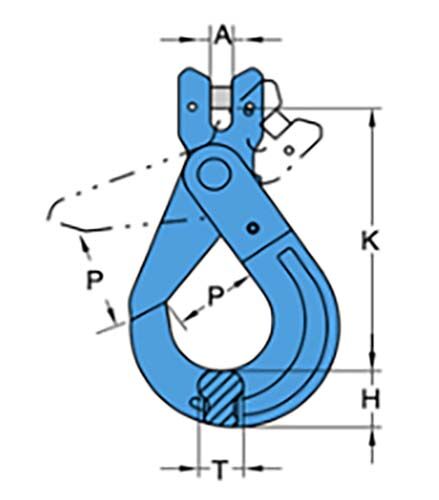

Dimension A (mm) 9

Dimension H (mm) 24

Weight (kgs) 0.9

WLL 2.5 T

Dimension K (mm) 119

Dimension P (mm) 34

Dimension T (mm) 20

Type Clevis Self Locking Hook
Grade G100
