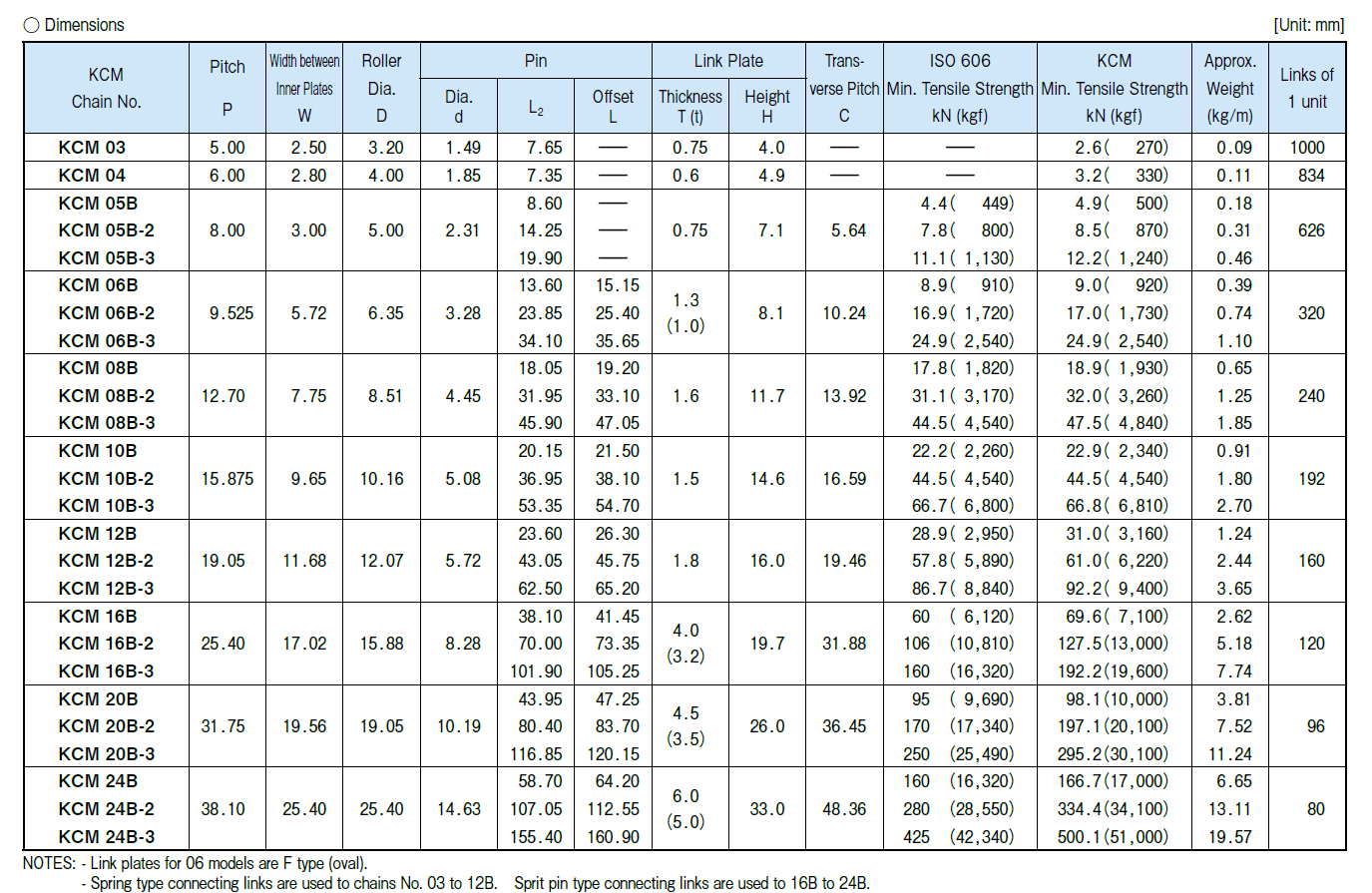

Specifications

AIMS SKU A0067249
Brand KCM
Model Number 10B-2/KCM
Chain Number 10B-2
Pitch (inch) 5/8
Pitch (P) 15.875 mm
Width Between Inner Plates (W) 9.65 mm
Roller Diameter (D) 10.16 mm
Pin Diameter (D) 5.08 mm
Link Plate Thickness (T) 1.5 mm
Link Plate Height (H) 14.6 mm
Chain Strands 2 (Duplex)
Number of Chain Links 192

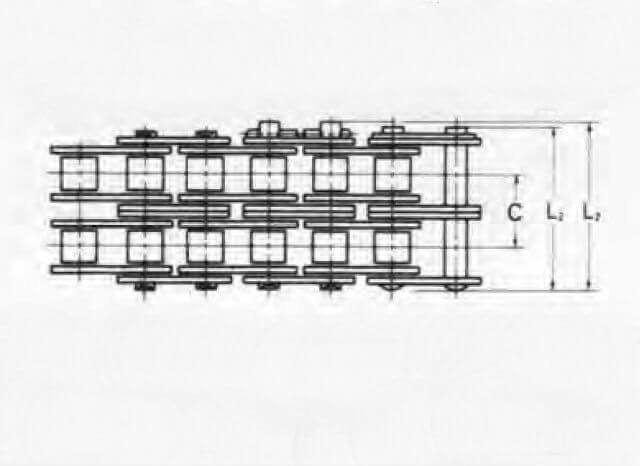

Pin L 36.95 mm
Pin Offset (l) 38.1 mm
Transverse Pitch (C) 16.59 mm
ISO 606 Minimum Tensile Strength, kN (kgf) 44.5 kN (4,540 kgf)
KCM Minimum Tensile Strength, kN (kgf) 44.5 kN (4,540 kgf)
Approximate Weight (kg/m) 1.8 kg/m
• System of Measurement British (BS)
• Material Steel
• Strand Duplex
