British (BS) Pilot Bore Sprocket - Duplex Strand - Cast Iron

British (BS) Pilot Bore Sprocket - Duplex Strand - Cast Iron

SKU: A0061773

Type: Pilot Bore Sprocket

$415.38
$415.38
Inc. GST

Available

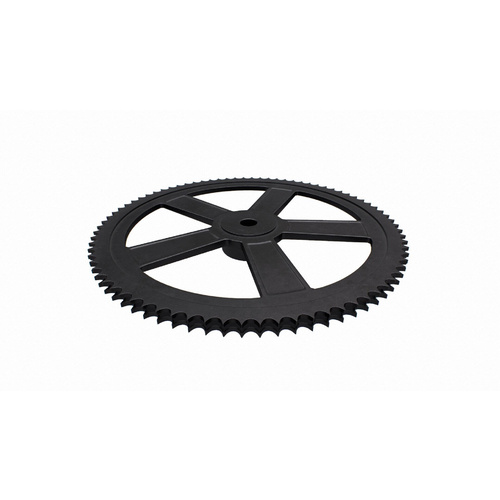

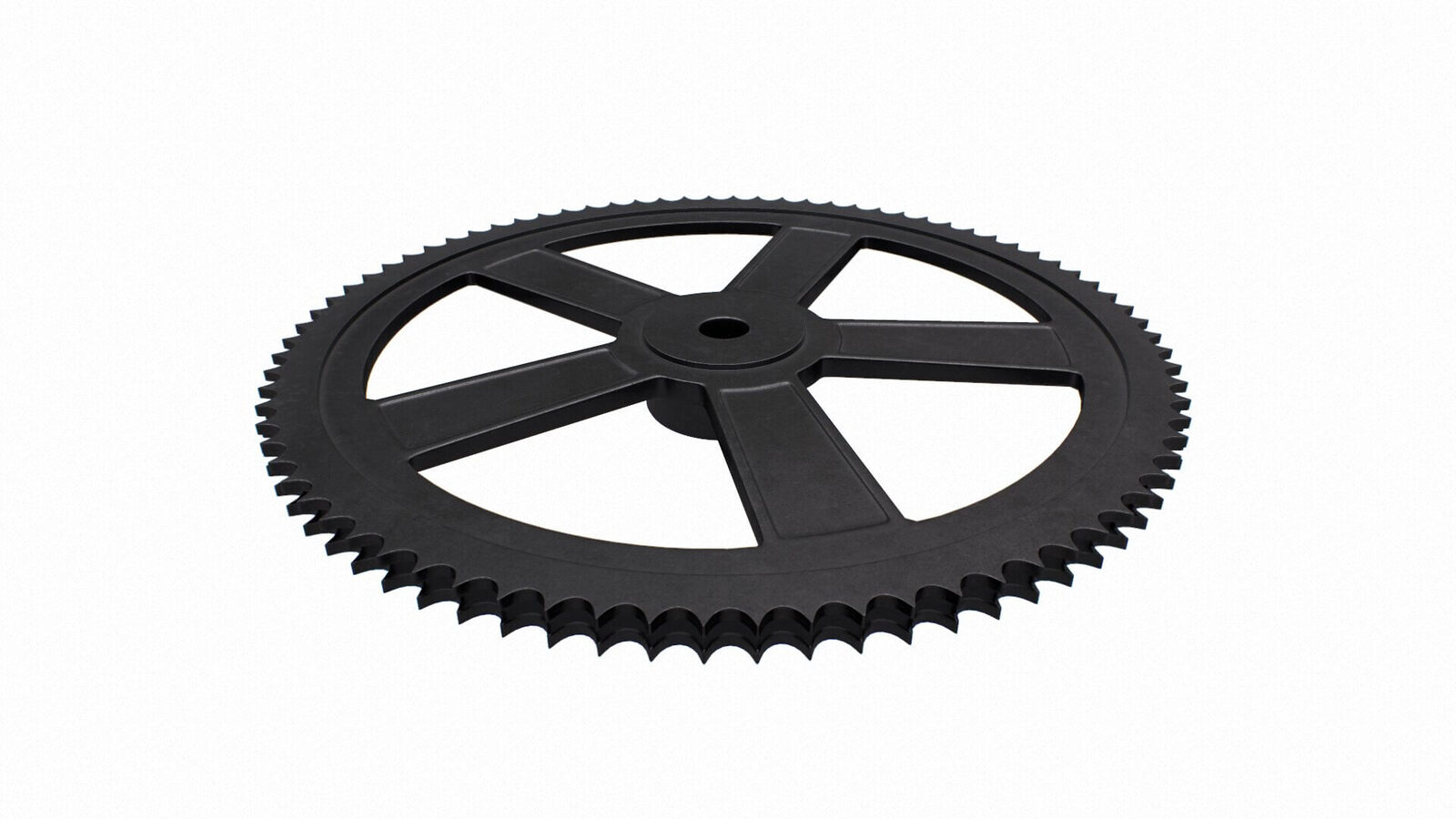

The British (BS) Pilot Bore Sprocket is a duplex strand type, made from durable cast iron. It adheres to the British Standard 10B and features 114 teeth. With induction hardened teeth, the sprocket offers reduced wear and extended lifespan.
Buy Now

Resources

File icon
Finer-Power-Sprockets-Catalogue

Descriptions

  • Steel roller chain sprocket with Induction Hardened Teeth for reduced tooth wear and longer sprocket life.
  • Sprocket is Pilot Bore and will require machining to suit your application.

Specifications

  • Material: Cast Iron
  • Standard: British Standard 10B
  • Pitch: 5/8" 5.88mm)
  • Teeth: 114
  • Pitch Diameter: 576.1 mm
  • Boss Diameter: 125 mm
  • Pilot Bore Diameter: 30 mm
  • Total Sprocket Width: 70 mm
  • Outside Diameter: 584.5 mm
  • Weight (Approx.): 49.3 Kg
