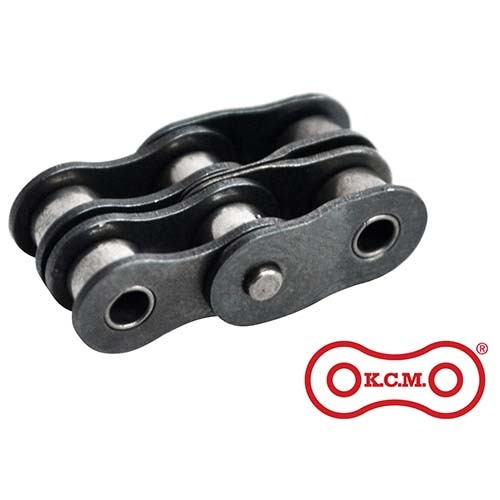

KCM 05B-2 BS Roller Chain Offset Link (Half Link) Duplex, 8 mm Pitch

KCM offset links (half links) let a length of BS duplex roller chain be made up with an odd number of pitches. Match the link to the KCM chain with the same chain number, strand count and series.

AIMS Industrial supplies these links individually. This listing covers 10 sizes (05B-32B).

Where this product is used

• General power transmission drives
• Conveyor and material handling drives
• Agricultural and farm machinery
• Replacing worn or broken chain on existing drives

Features

• Matched to the KCM chain of the same number and series
• Lets a chain be made up with an odd number of pitches
• Conforms to ISO 606-B; KCM lists it for Europe-built equipment
• Two-pitch offset links for sizes 03, 04 and 05B

Key specifications

Available sizes

Selecting the right option

For BS chain the number is the pitch in sixteenths of an inch: 08B is 8/16 in (1/2 in), 12B is 12/16 in (3/4 in), 16B is 1 in. The figure after the dash is the number of strands.

This is KCM standard (carbon steel) BS chain. KCM also lists stainless steel BS chain (05B to 16B) where corrosion, heat or cleanliness rules out carbon steel.

Fitting and use

KCM's power transmission tables note that chain with an offset link transmits 80% of the tabulated power.

KCM lists the offset links for sizes 25, 03, 04 and 05B as two-pitch type only.

KCM says not to replace damaged parts of a chain with new ones. Replace the whole chain, and check the sprockets when changing chain.

Check that a safety cover is fitted before running a chain drive.

Related products

Matching chain: KCM BS Roller Chain Duplex 05B-28B, 10 ft Box, KCM BS Roller Chain Duplex 10B and 12B, 50 ft Box and KCM BS Roller Chain Duplex 32B, 2 in Pitch, 5 ft Box. Matching connecting links: KCM BS Roller Chain Connecting Link Duplex 05B-32B.
