Description

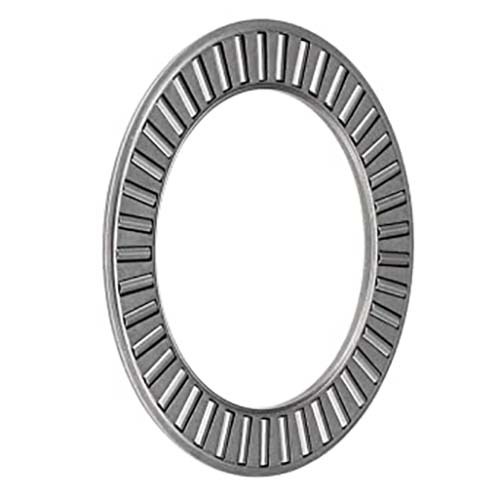

Thrust Needle Roller Bearing (NTB)

  • These bearings consist of a cage made from a steel plate, which is precisely press formed and surface hardened, and needle rollers with a diameter variation within 2micrometer.
  • They have a rigid structure and a high lubricant-retaining capacity.
  • As they have the lowest sectional height compared with other thrust bearings, they can be used instead of conventional thrust washers and can withstand high-speed rotations with a low coefficient of friction.
  • Specially designed thin inner rings (WS) and outer rings (GS), and especially thin (1 mm thick) thrust washers (AS), are available for use in various applications.
  • These bearings are generally used by utilizing their inner surface as the guide surface.

About Thrust Bearing

  • Thrust Bearings consist of the precisely made cage and rollers and can receive axial loads.
  • They have high rigidity and high load capacities and can be used in small spaces.
  • Thrust Needle Roller Bearings use needle rollers, while Thrust Roller Bearings use cylindrical rollers.

About Structure and Features

  • Thrust Bearings consist of precisely made cage and rollers. They have high rigidity and high load capacities and can be used in small spaces.
  • Thrust Needle Roller Bearings incorporate needle rollers, while Thrust Roller Bearings incorporate cylindrical rollers.
  • Various types of raceway rings are available, and suitable bearings can be selected according to the operating conditions.
  • When the bearing mounting surfaces of a machine are heat-treated and finished by grinding as raceways,
  • Thrust Bearings can be used without raceway rings allowing the machine to be made more compact.
  • They are most suited to applications where high accuracy is required at high speeds and under fluctuating heavy loads, such as driving mechanisms for automobiles, machine tools, and high-pressure pumps.

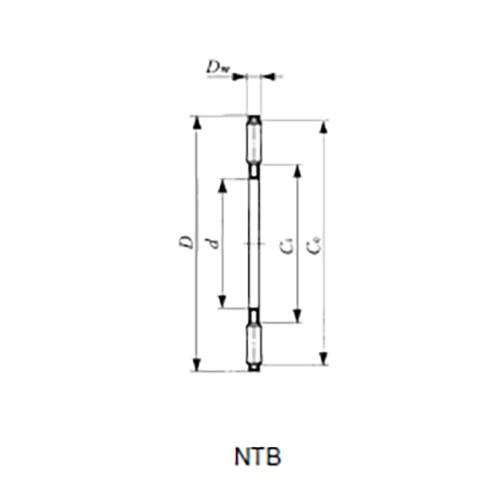

Specifications

  • AIMS SKU A0156075
  • Brand IKO
  • Model Number NTB1024/IKO
  • Width (mm) 2
  • Allowable Rotational Speed (2) Rpm 15000
  • Ci (mm) 14
  • b (mm) 2.75
  • Basic Static Load Rating C (N) 23900
  • Basic Dynamic Load Rating C (N) 7820
  • S (mm) 1
  • Ce (mm) 22
  • Outside Diameter (mm) 24
  • Shaft Diameter (mm) 10
  • Type Thrust Needle Roller Bearing
SKU: A0156075 On Sale

IKO Thrust Needle Roller Bearing (AS1024) 10 x 24 x 2mm

Thrust Needle Roller Bearing - NTB1024

$7.96
$11.37
