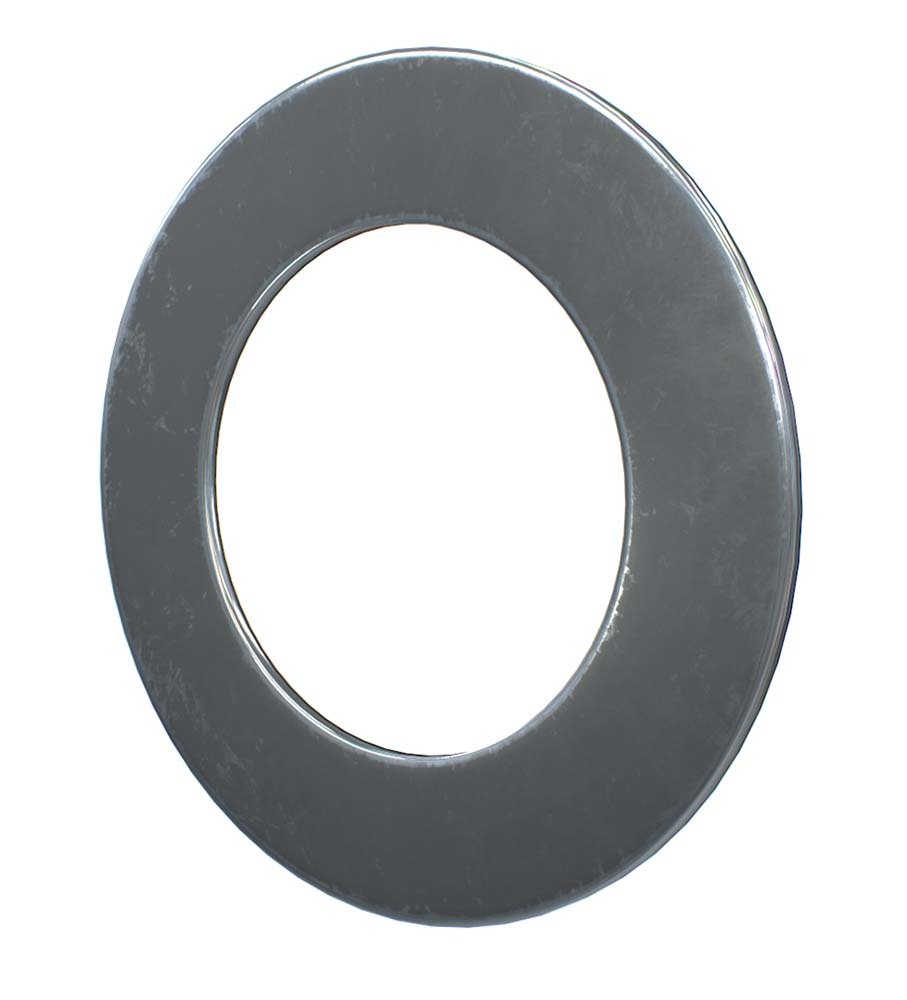

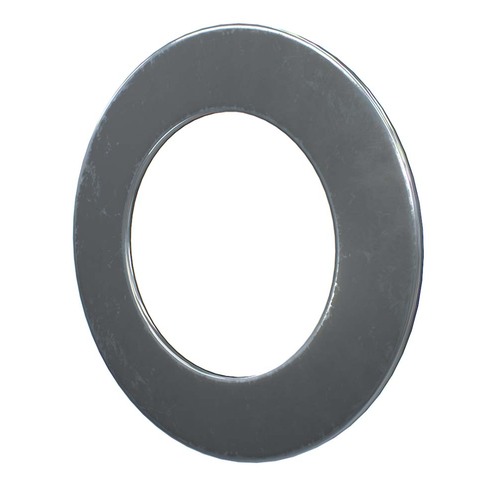

Thrust Needle Roller Bearing - Washer (AS)

  • Thrust washer (AS)

About Thrust Bearing

  • Thrust Bearings consist of the precisely made cage and rollers and can receive axial loads.
  • They have high rigidity and high load capacities and can be used in small spaces.
  • Thrust Needle Roller Bearings use needle rollers, while Thrust Roller Bearings use cylindrical rollers.

About Structure and Features

  • Thrust Bearings consist of precisely made cage and rollers. They have high rigidity and high load capacities and can be used in small spaces.
  • Thrust Needle Roller Bearings incorporate needle rollers, while Thrust Roller Bearings incorporate cylindrical rollers.
  • Various types of raceway rings are available, and suitable bearings can be selected according to the operating conditions.
  • When the bearing mounting surfaces of a machine are heat-treated and finished by grinding as raceways,
  • Thrust Bearings can be used without raceway rings allowing the machine to be made more compact.
  • They are most suited to applications where high accuracy is required at high speeds and under fluctuating heavy loads, such as driving mechanisms for automobiles, machine tools, and high-pressure pumps.

Specifications

  • AIMS SKU A0156095
  • Brand IKO
  • Model Number AS1226/IKO
  • Width (mm) 2
  • Allowable Rotational Speed (2) Rpm 13000
  • Ci (mm) 16
  • b (mm) 2.75
  • Basic Static Load Rating C (N) 26900
  • Basic Dynamic Load Rating C (N) 8340
  • S (mm) 1
  • Ce (mm) 24
  • Outside Diameter (mm) 26
  • Shaft Diameter (mm) 12
  • Type Thrust Needle Roller Bearing Washer
SKU: A0156095 On Sale

IKO Needle Roller Bearing Thrust - Washer 12 x 26 x 1mm

Thrust Needle Roller Bearing - Washer (AS)

$3.00
$4.28
