Specifications
- AIMS SKU A0121047
- Brand Seco
- Model Number 00050269
- Barcode Number 50269000000204
- Designation 16NL10W,CP500
- Profile Distance Ex (PDX) mm 1.5
- Threads Per Inch Minimum (TPIN) 10
- Theoretical Cutting Edge Length (L) mm 16.5
- Corner Radius (RE) mm 0.27
- Cutting Edge Count (CEDC) 3
- Profile Included Angle (PNA) deg 55.0 deg
- Tooth Count (NT) 1
- Thread Type (TTP) Internal
- Inscribed Circle Diameter (IC) mm 9.53
- Insert Thickness (S) mm 3.47
- Profile Distance Ey (PDY) mm 1.2
- Threads Per Inch Maximum (TPIX) 10
- Insert Seat Size Code (SSC) 16
- Insert Hand (IH) Left
- Type Snap-Tap® Thread Turning Insert
- Thread Type (TTP) Internal
- Grade CP500
SKU: A0121047

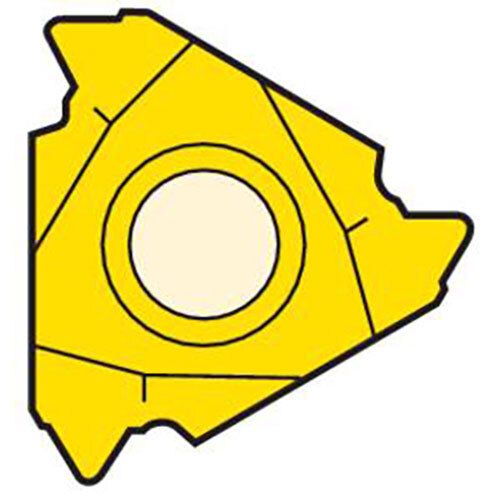

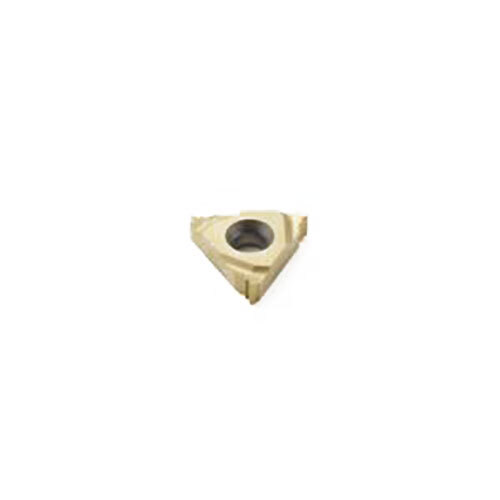

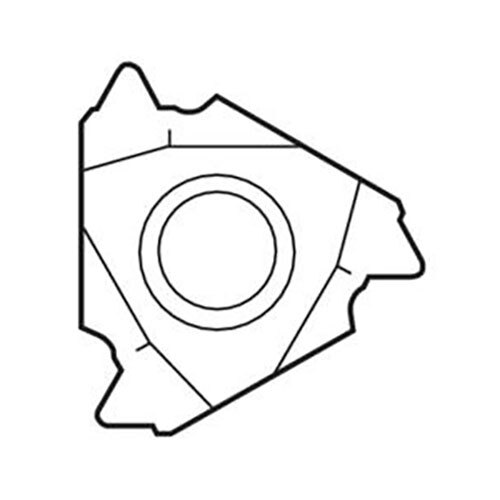

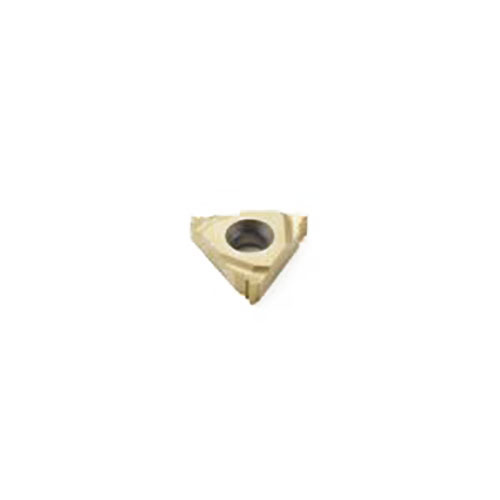

Seco Internal Snap-Tap® Thread Turning Insert 3.47 x 16.5mm Left 10-10 TPI CP500 Whitworth, BSW Thread 16NL10W,CP500 Pack of 2
Thread Turning Insert 16NL - Whitworth, BSW Thread Grade
$93.24
