Description

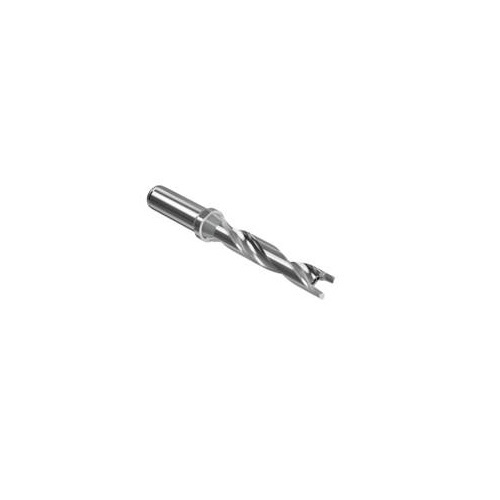

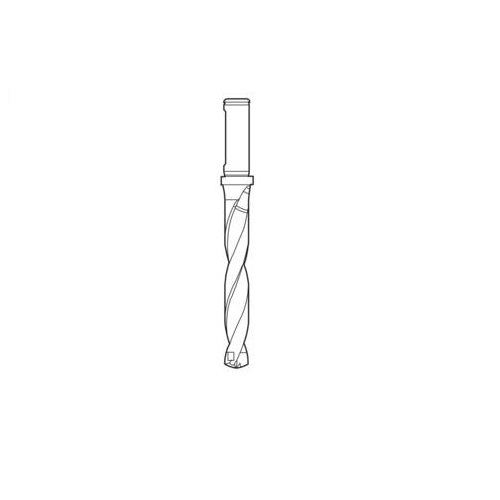

Seco ISO 9766 SD405 Crownloc™ Plus Exchangeable Tip Drill 131.2 x 15.88mm SD405-12.00/12.49-63-0625R7

ISO 9766 SD405 Crownloc™ Plus Exchangeable Tip Drill

  • Internal coolant.
  • ISO9766 fits holders: Weldon 1835B, ISO 5414, DIN 60880.

All About Crownloc™ Plus:

  • Crownloc™ Plus is a new generation of Seco drills with exchangeable crowns.
  • Featuring a new geometry, coating and locking interface.
  • Crownloc Plus improves chip evacuation and wear resistance in a variety of materials.
  • Crownloc Plus features a strong drill body design, high-strength locking interface with deep and wide flutes and polished body.
  • The drill’s crowns have a new optimized geometry for improved chip formation and enhanced centering capability.
  • The combination of a TiAlN coating, low-friction TiN coating on the exchangeable head and 10% micro-grain substrate serve to increase the toughness and wear resistance while reducing the potential for edge build-up.
  • Crownloc Plus provides you with high productivity, excellent chip evacuation, flexibility, and easy handling.
  • These lead to increased output, higher process security, reduction of tool inventory and elimination of regrinding costs.

Specifications

  • AIMS SKU A0114188
  • Brand Seco
  • Model Number 02623555
  • Barcode Number 23555026000103
  • Net Weight (kg) 0.154
  • Designation SD405-12.50/12.99-65-16R7
  • Shank Length (LS) mm 48
  • Usable Length (LU) mm 65
  • Peripheral Effective Cutting Edge Count (ZEFP) 2
  • Cutting Diameter Minimum (DCN) mm 12.5
  • Flange Diameter (DF) mm 20
  • Functional Length Secondary (LFS) mm 86
  • Shank Diameter (DMM) X Overall Length (OAL) mm 16 x 134
  • Cutting Diameter Maximum (DCX) mm 13
  • Usable Length Max (LUX) mm 73.5
  • Type Exchangeable Tip Drill
  • Shank Type ISO 9766

Video

SKU: A0114188

Seco ISO 9766 SD405 Crownloc™ Plus Exchangeable Tip Drill 134 x 16mm SD405-12.50/12.99-65-16R7

ISO 9766 Crownloc™ Plus Exchangeable Tip Drill

$538.64
RRP $621.50
SAVE $82.86 (13%)
