Specifications

AIMS SKU A0114123
Brand Seco
Model Number 02846076
Barcode Number 46076028000102
Net Weight (kg) 0.031

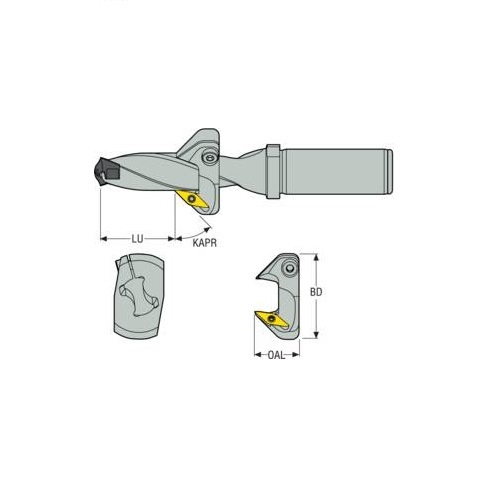

Designation SD400-C45-12.50/12.99
Tool Cutting Edge Angle (KAPR) 45.0 deg
Overall Length (OAL) mm 20
Peripheral Effective Cutting Edge Count (ZEFP) 2
Body Diameter (BD) X Cutting Depth Max (mm) 34 x 2
Drill Depth Usable Length SD403 (LUN1-LUX1) mm 7-23
Drill Depth Usable Length SD405 (LUN2-LUX2) mm 7-48
Drill Depth Usable Length SD408 (LUN3-LUX3) mm 48-88

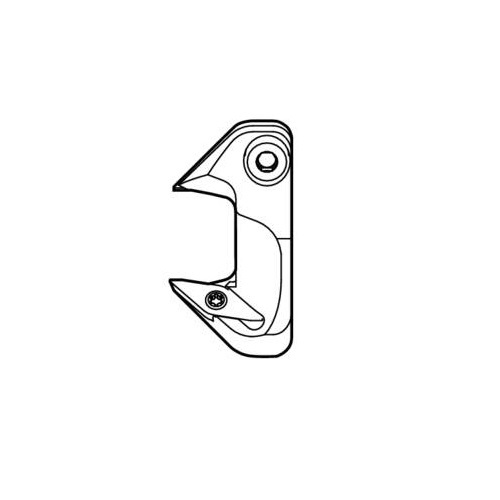

• Type Crownloc™ Plus Chamfer Module
