Description

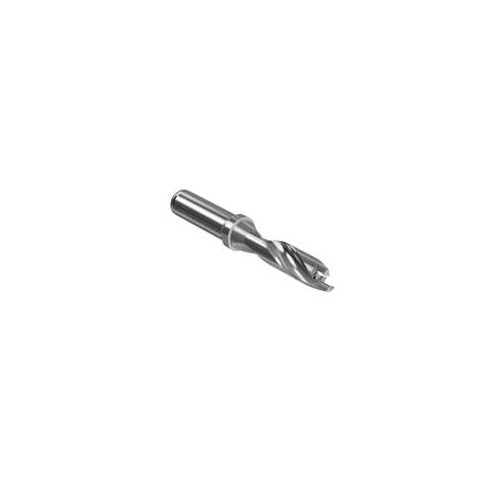

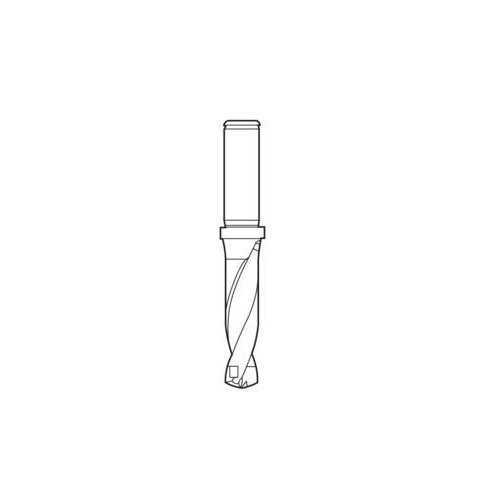

Seco Cylindrical SD403 Crownloc™ Plus Exchangeable Tip Drill 106.2 x 15.88mm SD403-12.00/12.49-38-0625R1

Cylindrical SD403 Crownloc™ Plus Exchangeable Tip Drill

  • Internal coolant.
  • Cylindrical shank (R1) fits holders: 5834 and 5672.

All About Crownloc™ Plus:

  • Crownloc™ Plus is a new generation of Seco drills with exchangeable crowns.
  • Featuring a new geometry, coating and locking interface.
  • Crownloc Plus improves chip evacuation and wear resistance in a variety of materials.
  • Crownloc Plus features a strong drill body design, high-strength locking interface with deep and wide flutes and polished body.
  • The drill’s crowns have a new optimized geometry for improved chip formation and enhanced centering capability.
  • The combination of a TiAlN coating, low-friction TiN coating on the exchangeable head and 10% micro-grain substrate serve to increase the toughness and wear resistance while reducing the potential for edge build-up.
  • Crownloc Plus provides you with high productivity, excellent chip evacuation, flexibility, and easy handling.
  • These lead to increased output, higher process security, reduction of tool inventory and elimination of regrinding costs.

Specifications

  • AIMS SKU A0114147
  • Brand Seco
  • Model Number 02623546
  • Barcode Number 23546026000101
  • Net Weight (kg) 0.237
  • Designation SD403-19.00/19.99-60-0750R1
  • Shank Length (LS) mm 50
  • Usable Length (LU) mm 60
  • Peripheral Effective Cutting Edge Count (ZEFP) 2
  • Cutting Diameter Minimum (DCN) mm 19
  • Flange Diameter (DF) mm 24
  • Functional Length Secondary (LFS) mm 92
  • Shank Diameter (DMM) X Overall Length (OAL) mm 19.05 x 142
  • Cutting Diameter Maximum (DCX) mm 20
  • Usable Length Max (LUX) mm 73
  • Type Exchangeable Tip Drill
  • Shank Type Cylindrical

Video

SKU: A0114147

Seco Cylindrical SD403 Crownloc™ Plus Exchangeable Tip Drill 142 x 19.05mm SD403-19.00/19.99-60-0750R1

Cylindrical SD403 Crownloc™ Plus Exchangeable Tip Drill

$551.98
RRP $636.90
SAVE $84.92 (13%)
