Specifications

AIMS SKU A0114130
Brand Seco
Model Number 02846083
Barcode Number 46083028000100
Net Weight (kg) 0.043
Designation SD400-C45-19.00/19.99

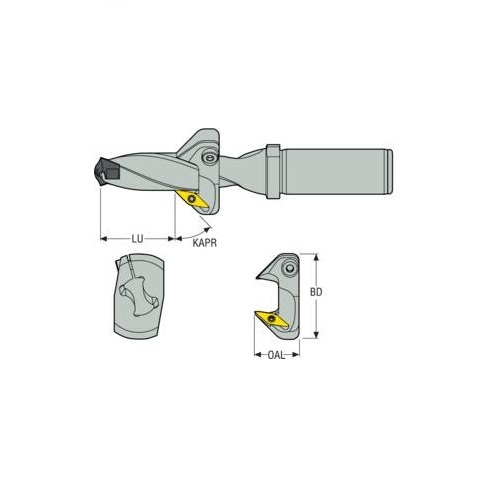

Tool Cutting Edge Angle (KAPR) 45.0 deg
Overall Length (OAL) mm 20
Peripheral Effective Cutting Edge Count (ZEFP) 2
Body Diameter (BD) X Cutting Depth Max (mm) 40 x 2
Drill Depth Usable Length SD403 (LUN1-LUX1) mm 10-49
Drill Depth Usable Length SD405 (LUN2-LUX2) mm 10-89
Drill Depth Usable Length SD408 (LUN3-LUX3) mm 89-149

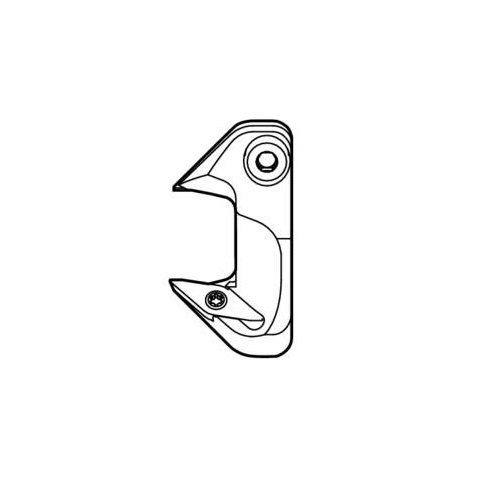

• Type Crownloc™ Plus Chamfer Module
