Specifications

AIMS SKU A0210257
Brand Samick
Model Number SCE16WUU-SAMICK
Nominal Shaft Diameter (mm) 16

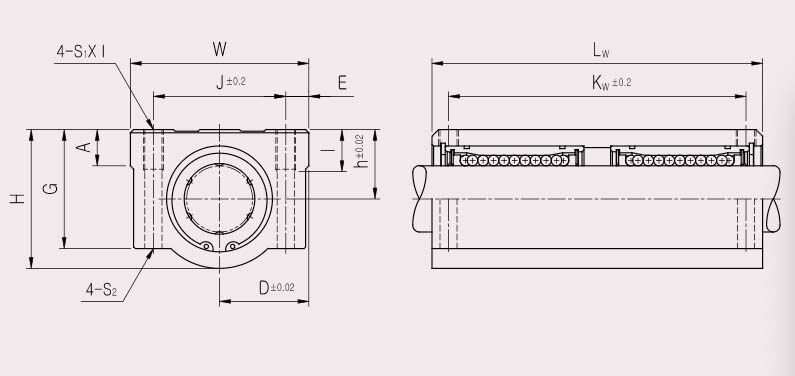

Dimension A (mm) 9
Dimension D (mm) 25
Dimension E (mm) 7
Dimension G (mm) 32.5
Dimension H (mm) 38.5
Dimension W (mm) 50
Dimension J (mm) 36
L/B LME16Ux2
Dimension S₁ x ℓ (mm) M5x12
Dimension S₂ ø4.3
Dimension Kw (mm) 79
Dimension Lw (mm) 89
Basic Load Rating (N) - Dynamic ( C ) 1230
Basic Load Rating (N) - Static (Co) 2340
Weight (gf) 360

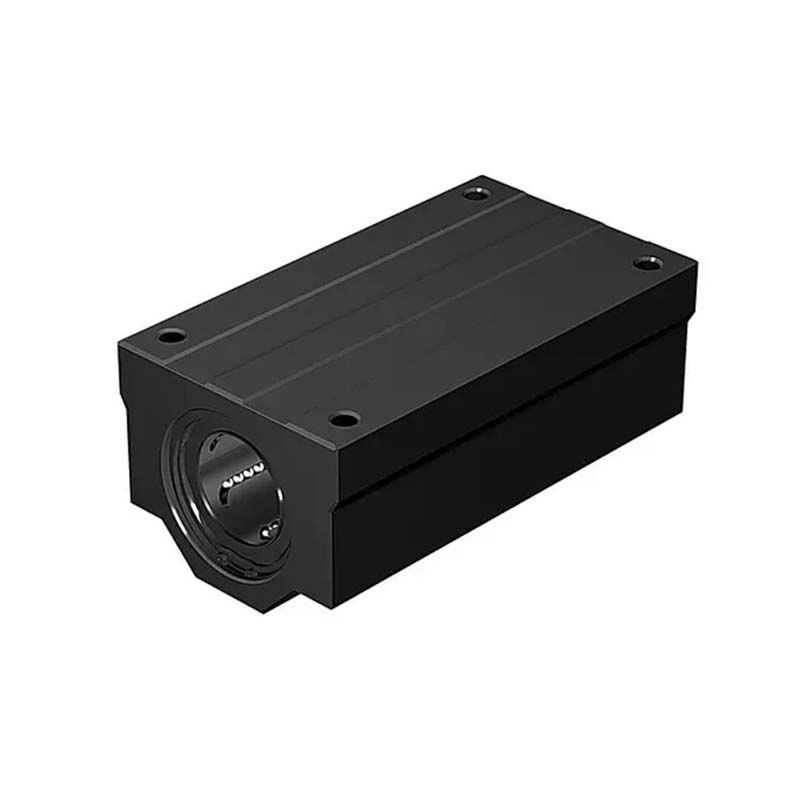

• Type Linear Bushing
• Linear Bushing Model SCE
• Linear Bushing Standard European Standard
