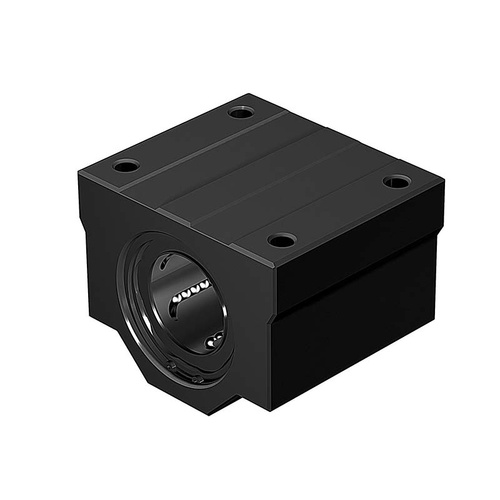

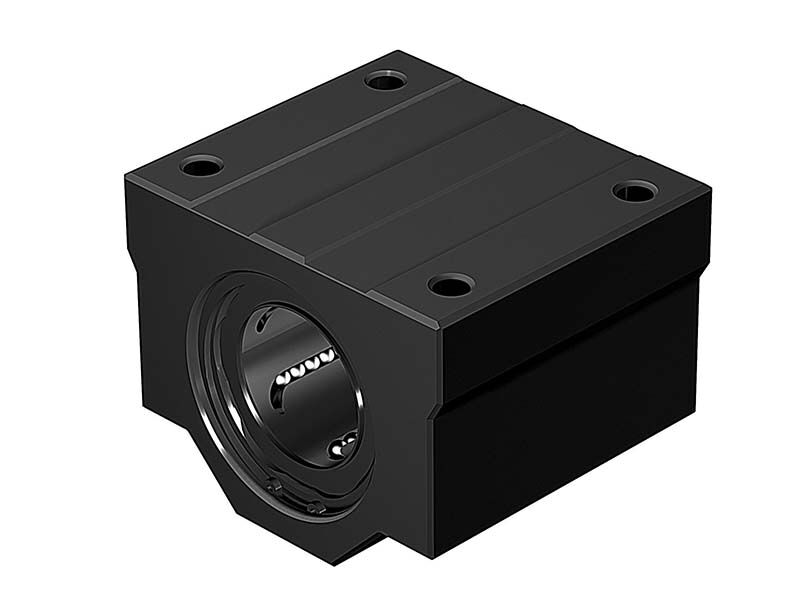

Samick Linear Bushing - SCE Aluminuim Case Unit

Description

Samick Linear Bushing - SCE Aluminuim Case Unit

European Aluminuim Case Unit.
Both side seal.

Note:

Dynamic load rating is based on the nominal life of 50㎞
Based on the weight of resin retainer
1N ≒ 0.102kgf
Steel retainer applicable from SCE08 to SCE30 only

About Linear Bushing Model SC

It is a case unit where the standard type of Linear Bushing is incorporated into a small, lightweight aluminium casing. This model can easily be mounted simply by securing it to the table with bolts.

Specifications

AIMS SKU A0210253

Brand Samick

Model Number SCE16UU-SAMICK

Nominal Shaft Diameter (mm) 16

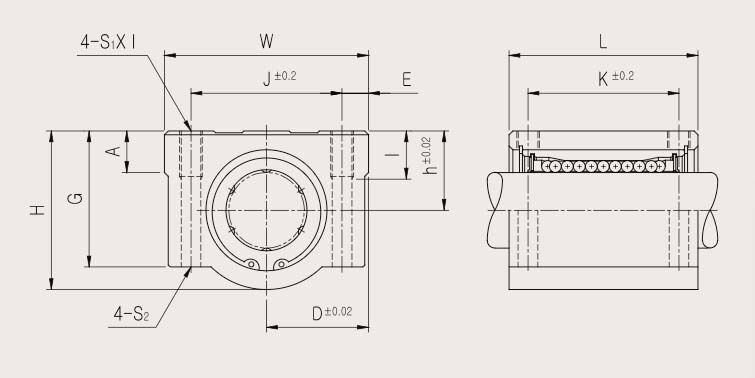

Dimension A (mm) 9

Dimension D (mm) 25

Dimension E (mm) 7

Dimension G (mm) 32.5

Dimension H (mm) 38.5

Dimension L (mm) 44

Dimension K (mm) 34

Dimension W (mm) 50

Dimension J (mm) 36

L/B LME16UU

Dimension S₁ x ℓ (mm) M5x12

Dimension S₂ ø4.3

Basic Load Rating (N) - Dynamic ( C ) 770

Basic Load Rating (N) - Static (Co) 1170

Weight (gf) 180

Type Linear Bushing
Linear Bushing Model SCE
Linear Bushing Standard European Standard

Calculate Shipping

Resources

Technical Data Sheet
