Samick Linear Bushing - SCV Aluminuim Case Unit

Description

Samick Linear Bushing - SCV Aluminuim Case Unit

Aluminuim Case Unit.
Compact type.
Both side seal.
Asian standard.

Note:

Dynamic load rating is based on the nominal life of 50㎞
Based on the weight of resin retainer
1N ≒ 0.102kgf
Steel retainer applicable from SC08V to SC30V only

About Linear Bushing Model SC

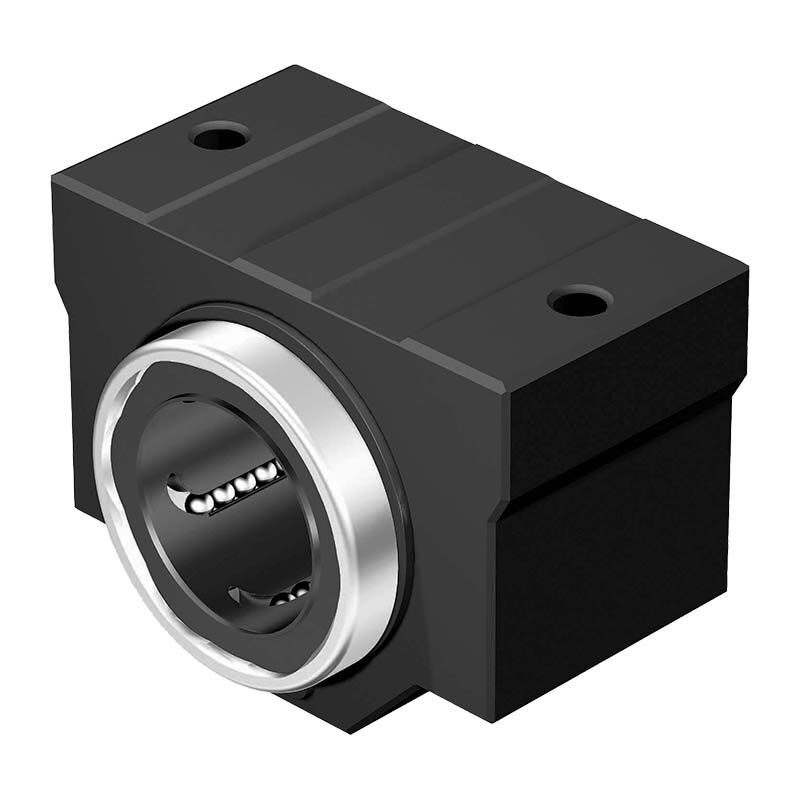

It is a case unit where the standard type of Linear Bushing is incorporated into a small, lightweight aluminium casing. This model can easily be mounted simply by securing it to the table with bolts.

Specifications

AIMS SKU A0210247

Brand Samick

Model Number SC8VUU-SAMICK

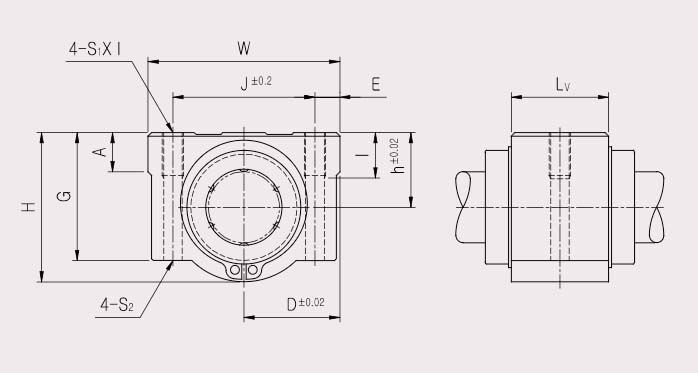

Nominal Shaft Diameter (mm) 8

Dimension A (mm) 6

Dimension D (mm) 17

Dimension E (mm) 5

Dimension G (mm) 18

Dimension H (mm) 22

Dimension W (mm) 34

Dimension J (mm) 24

L/B LM08UU

Dimension S₁ x ℓ (mm) M4x8

Dimension S₂ ø3.4

Dimension Lv (mm) 15.4

Basic Load Rating (N) - Dynamic ( C ) 260

Basic Load Rating (N) - Static (Co) 400

Weight (gf) 36

Type Linear Bushing
Linear Bushing Model SCV
Linear Bushing Standard Asian Standard
