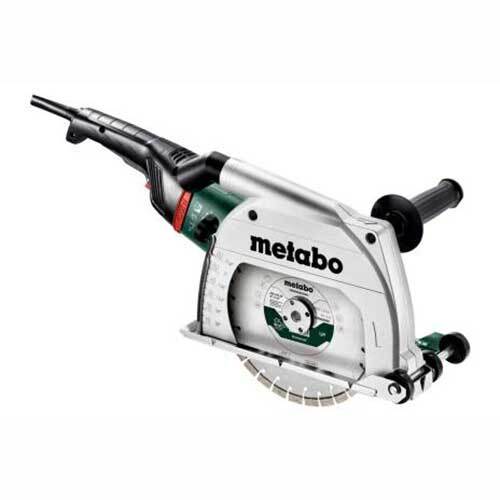

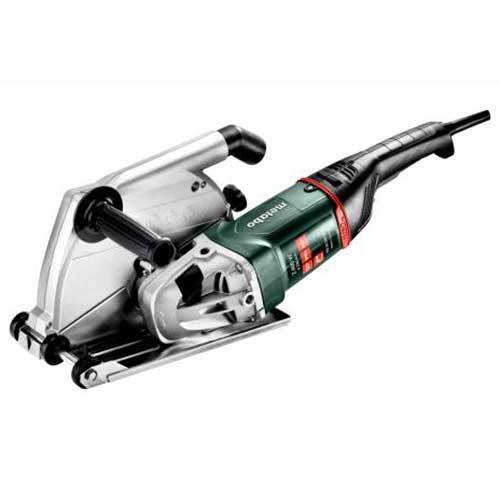

Metabo TE 24-230 MVT CED Diamond Cutting System

• Powerful diamond cutter for low-dust dry cuts up to 60 mm in mineral materials
• Best view on the cutting line thanks to the open design of the dust extraction shroud
• Efficient dust extraction for health protection and clean construction sites
• Fast work progress and long service life thanks to powerful Metabo Marathon-motor
• Ideal for precise, horizontal cutting thanks to pushing cut; conversion to pulling cut possible
• Precise cuts on even surfaces thanks to metal base plate with rollers
• Safety and control in any situation: Soft start, Metabo VibraTech (MVT) vibration damping, electronic safety shutdown and restart protection
• Robust die-cast aluminium dust extraction shroud with tool-free setting of the cutting depth
• Auto-stop carbon brushes to protect the motor
• Connection for dust extraction Ø 35/41 mm

Contents

• Extraction hood CED 230
• Inner support flange
• Spacer Rings
• Nut with two holes
• Side handle
• Plastic carry case
• Diamond cutting disc UP
• Flat-pin spanners

Technical Data

• Cutting disc Ø: 230 mm / 9 "
• Max. cutting depth: 60 mm / 2 3/8 "
• Rated input power: 2400 W
• No-load speed: 6600 rpm

Characteristics

Vibration

Noise Emission
