Specifications
- AIMS SKU A0114673
- Brand Seco
- Model Number 00093868
- Barcode Number 93868000000105
- Net Weight (kg) 0.275
- Designation A16R-SVUBL11

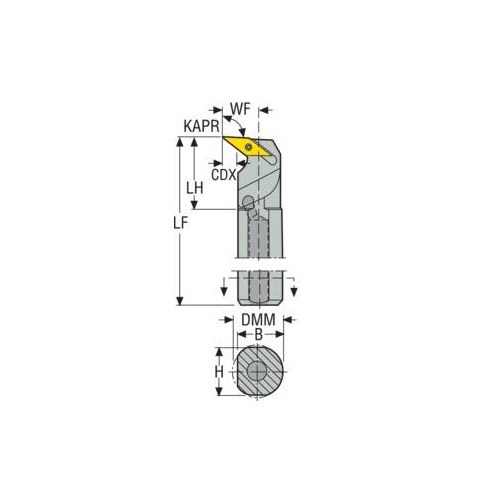

- Cutting Diameter Internal Minimum (DCINN) 22
- Shank Diameter (DMM) 16
- Tool Cutting Edge Angle (KAPR) 93.0 deg
- Direction Of Cutting (hand) Left
- Cutting Depth Max (CDX) mm 4.5
- Inclination Angle (LAMS) -7.0 deg
- Tool Type U Type
- Height Of Tool Holder Shank (H) mm 15
- Connection Text Workpiece Side (ctws) VB1102
- Connection Text Machine Side (CTMS) 16
- Functional Width (WF) mm 13
- Tool Cutting Edge Angle Code (KAPRC) U
- Functional Length (LF) 200
- Head Length (LH) mm 25
- Shank Width (b) mm 15
- Rake Angle Orthogonal (gamo) 0.0 deg
- Cutting Depth Radial Max (CDRX) mm 4.5
- Cutting Edge Length (mm) 11
- Type Turning Toolholder
- Tool Holder Type Steel
- Version (internal/external/both) Internal
- Insert Clamping System (ICS) Screw Lock
- Shank Type Cylindrical
SKU: A0114673

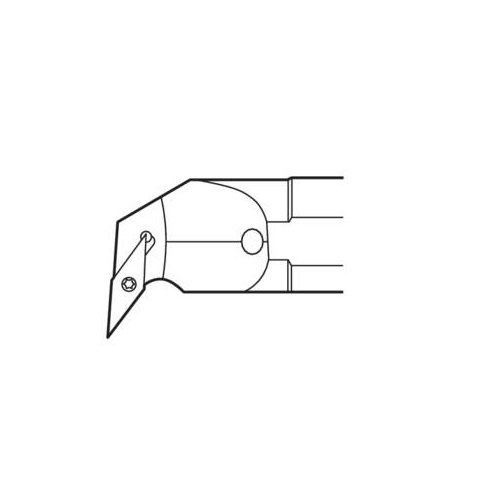

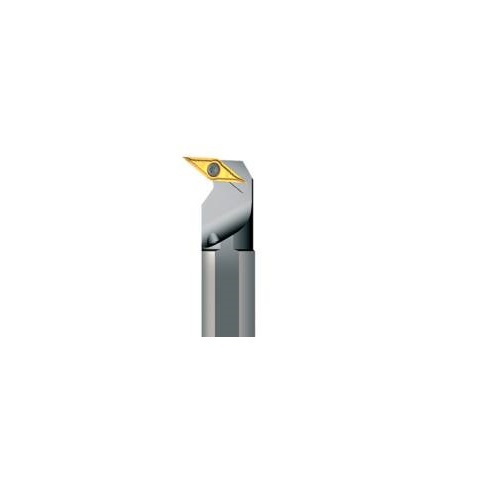

Seco Internal Turning Toolholder Steel Screw Lock 200 x 16 x 11mm Left 93° V Insert Shape A16R-SVUBL11
Turning Internal Toolholder (Steel - Screw Lock - U Type
$194.48
SAVE $48.62 (20%)
