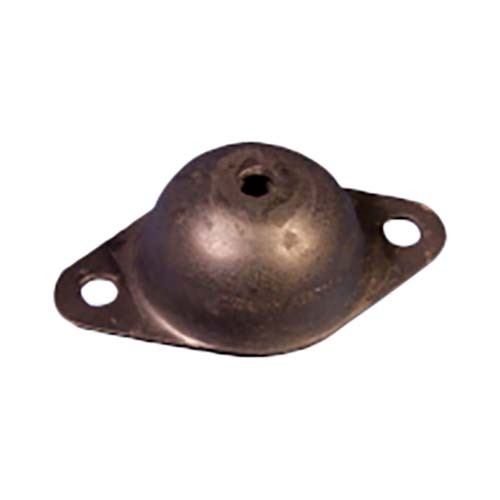

Mackay Heavy Duty Flange Isolator M139

Description

Mackay Heavy Duty Flange Isolator M139

These special heavy-duty isolators were developed to meet almost every type of machinery installation within the loading range, with telescopic metal inserts providing considerable stability in all directions.
Loads can be suspended as well as supported.
The isolators can be fastened to the floor or other base.

Specifications

AIMS SKU A0166362

Brand Mackay

Model Number M13940

Barcode Number 9313699022767

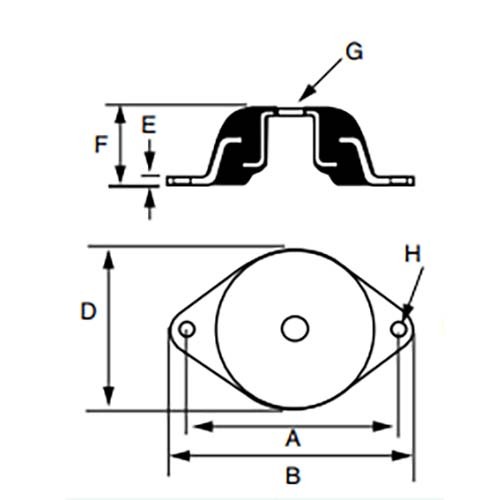

Thread Size 13/16 inch

Shear Deflection (mm) 3.0 - 5.0

Compression Load 400 - 550 kg

Height Size (mm) 48

Durometer 40

Shear Load (kg) 150 - 250

Plate Thickness (mm) 3

Length in (mm) 157

Hole Diameter 14.2 mm

Compression Deflection (mm) 3.4 - 4.6

Centre To Centre 127 mm

Width 102 mm

Weight (kg) 0.6
