***Dust/Oil Seal Shield M189 sold separately. Contact AIMS for assistance***

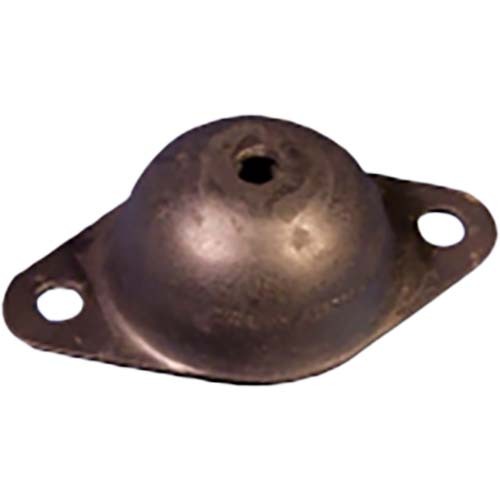

Mackay Heavy Duty Flange Isolator 316 Stainless Steel

  • These special heavy-duty isolators were developed to meet almost every type of machinery installation within the loading range, with telescopic metal inserts providing considerable stability in all directions.
  • Loads can be suspended as well as supported.
  • The isolators can be fastened to the floor or other base
  • Shield available (Part No. M189) to protect isolators from mechanical and chemical attacks. Sold separately, contact AIMS for assistance.

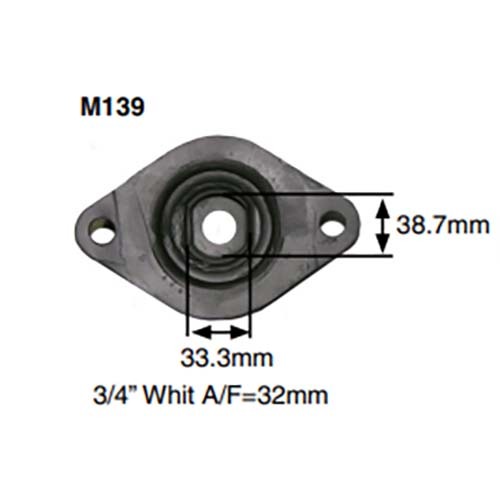

Dimensions

  • Compression Load (kg): 725 - 900
  • Compression Deflection (mm): 3.6 - 4.4
  • Shear Load (kg): 400 - 550
  • Shear Deflection (mm): 3.4 - 4.6
  • Centre to Centre (mm): 127
  • Length (mm): 157
  • Width (mm): 102
  • Plate Thickness (mm): 3
  • Height Size (mm): 48
  • Thread Size: 13/16 inch
  • Hole Diameter (mm): 14.2
  • Weight (kg): 0.6
  • Durometer: 60

Specifications

  • AIMS SKU A0166496
  • Brand Mackay
  • Model Number M13960SS
  • Barcode Number 9313699022798
  • Type Flange Isolator
  • Material 316 Stainless Steel
SKU: A0166496

Mackay M13960SS Heavy Duty Flange Isolator 157 x 102 x 48mm - 725 to 900kg

Mackay Heavy Duty Flange Isolator 316 Stainless Steel

$207.87
