Specifications

AIMS SKU A0134817
Length (mm) 280
Pitch (mm) 4
Size M36
Stress Area (mm²) 817
Minimum Tensile Stress (mpa Or N/mm²) 400
Minimum Stress Under Proof Load (mpa Or N/mm²) 225
Minimum Proof Load (kn) 183.8
Minimum Ultimate Tensile Load (kn) 326.8
Core Area (mm) 759
Tensile Strength (kn) 759
Proof Strength (kn) 326.8
Shear Strength (kn) 183.8
Recommended Tightening Torque Hdg (nm) 602.2

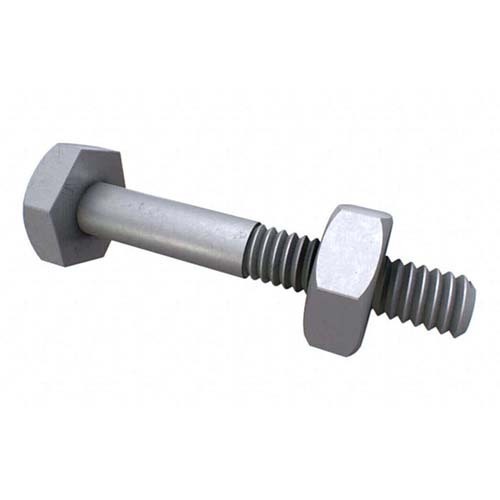

• Type Hex Bolt and Nut
• System of Measurement Metric
• Material Low Tensile Steel
• Finish Hot Dip Galvanised
• Class 4.6
