Specifications

AIMS SKU A0134895
Length (mm) 130
Pitch (mm) 3.5
Size M30
Stress Area (mm²) 561
Minimum Tensile Stress (mpa Or N/mm²) 400
Minimum Stress Under Proof Load (mpa Or N/mm²) 225
Minimum Proof Load (kn) 126.2
Minimum Ultimate Tensile Load (kn) 224.4
Core Area (mm) 519
Tensile Strength (kn) 519
Proof Strength (kn) 224.4
Shear Strength (kn) 126.2
Recommended Tightening Torque Plain (nm) 124.6

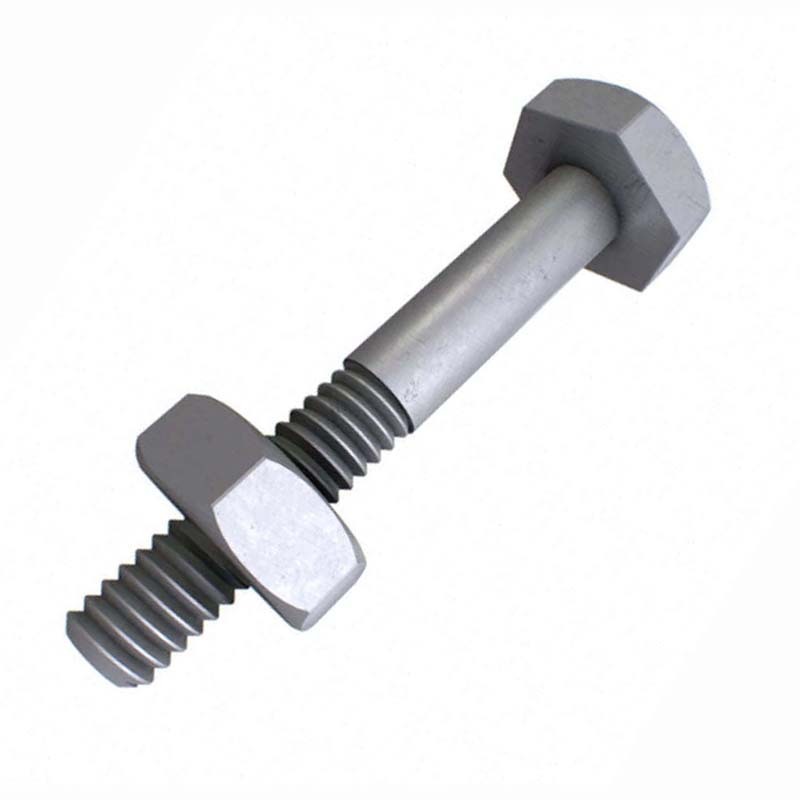

• Type Hex Bolt and Nut
• System of Measurement Metric
• Material Low Tensile Steel
• Finish Plain
• Class 4.6
