Specifications

AIMS SKU A0134979
Length (mm) 900
Pitch (mm) 2
Size M16
Stress Area (mm²) 157
Minimum Tensile Stress (mpa Or N/mm²) 400
Minimum Stress Under Proof Load (mpa Or N/mm²) 225
Minimum Proof Load (kn) 35.3
Minimum Ultimate Tensile Load (kn) 62.8
Core Area (mm) 144
Tensile Strength (kn) 144
Proof Strength (kn) 62.8
Shear Strength (kn) 35.3
Recommended Tightening Torque Hdg (nm) 51.4

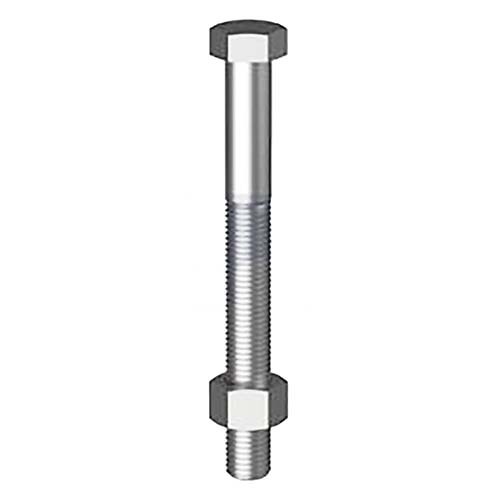

• Type Hex Bolt and Nut
• System of Measurement Metric
• Material Low Tensile Steel
• Finish Hot Dip Galvanised
• Class 4.6
