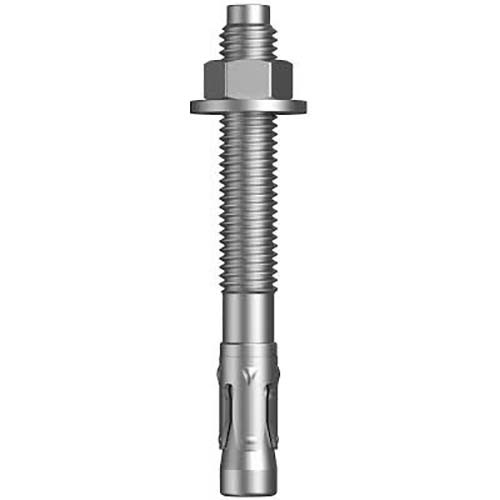

M16 x 125mm Clawbolt Pro Wedge Anchor C1 Zinc Plated Pack of 25 - Hobson

Description

Clawbolt Pro Wedge Anchor C1 Fire Rated Zinc Plated ETA Option 1

M8 with ETA Approval (Option 1) and Fire Rating.
M10 and M16 with ETA Approval (Option 1), Fire Rating and Seismic Certified (C1).
M12 and M20 with ETA Approval (Option 1), Fire Rating and Seismic Certified (C1 and C2).

Features

Quick and easy to install.
Immediate loading.
Intended working life- 50 years.
ETA Approval- Option 1.
Fire Rated.

Applications

Suitable for cracked and non-cracked concrete.
Pallet racking.
Formwork support fastening.
Mechanical, electrical and pipe bracket fixing.
Structural columns and beams.
Facade installation.
Stadium seating.
Guide and hand rails.

Specifications

AIMS SKU A0133216

Length (mm) 125

Size M16

Pitch Coarse (mm) 2

Pitch Fine (mm) 1.5

Threads Per Inch in UNC 11

Threads Per Inch in UNF 18

Threads Per Inch in BSW 11

Threads Per Inch in BSF 14

Family Code EAWMSZD17M

Type Clawbolt Wedge Anchor
Finish Zinc Plated
