Description

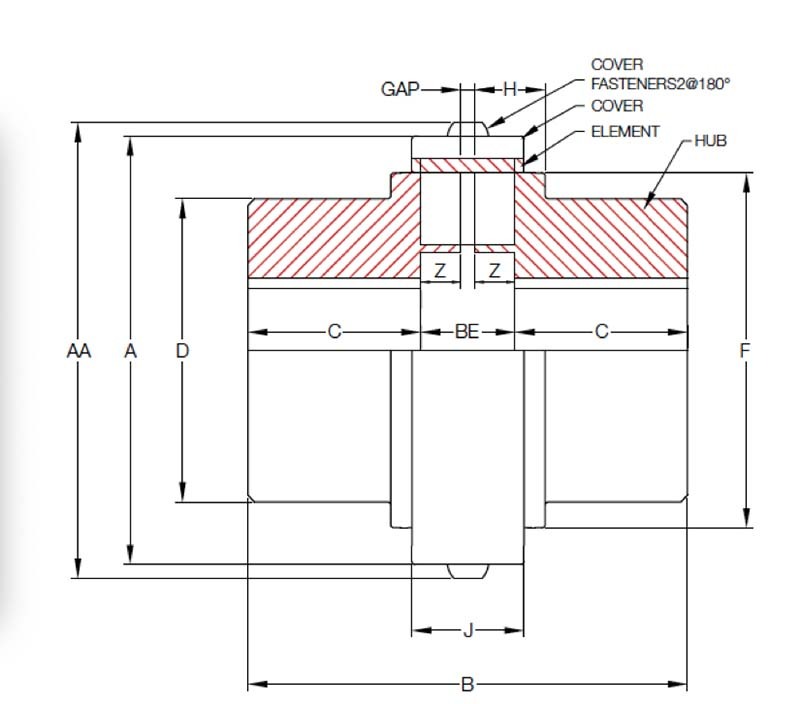

***Catalogue dimensions are reference only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.***

***Element Only***

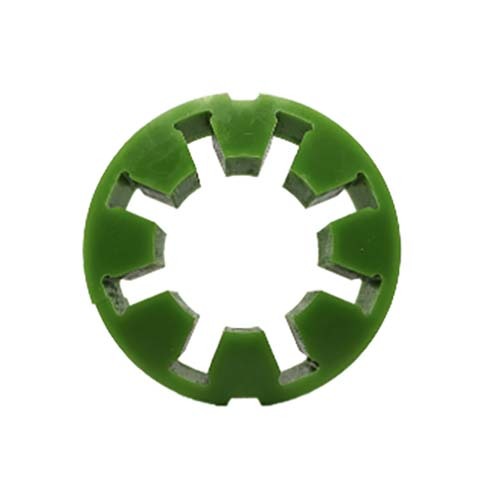

KCP KW Flex Coupling Element - KW10 Type

About KW Flex Coupling

KCP KW Flex Coupling is designed to allow for quick and easy element replacement.
Removal of hubs or the realignment of motors or drives is not required, which in turn reduces overall downtime.
Advanced production methods and innovative material selection allows for a higher capacity at a more competitive price.
KW Flex Coupling is non-lubricated and is designed from flexible urethane.
The lack of need for lubrication decreases recurrent maintenance costs.
Available in both close-coupled and spacer designs, Urethane Flexible Couplings accommodate shaft diameters up to 186mm and torque loads up to 15,028 Nm.
The urethane element has excellent resistance to wear and chemicals, and can be operated between temperatures of -40°C to 95°C.
The compact design of this coupling eliminates that need for coupling guard redesign for specific applications.
