Description

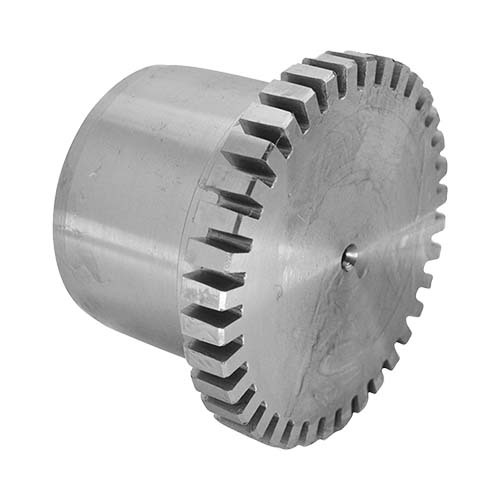

Grid Coupling Hub

  • Hub taper grid coupling.

*** Hub Only ***

About KCP Taper Grid Coupling

  • Taper Grid Couplings are recognizable due to their unique steel flexible grid running through the tapered hubs.
  • The benefits of the Grid Coupling are reduced vibration and shock loads.
  • The compact size of shaft-to-shaft couplings.
  • Handle torque capacity due to high strength hardened alloy steel construction
  • Deflect torsionally for normal shock or vibratory loads.
  • Capacity for misalignment without producing the detrimental side loads.
  • Designed with a trapezoidal cross-section and tempered for spring hardness.
  • Increase in strength rating and provide reserve strength for a longer part life.
  • Easy to fit the trapezoidal grids into the slots of the hub and short time of installation.
  • Free to rock, pivot, and float.

Specifications

  • AIMS SKU A0148872
  • Brand KCP
  • Model Number 1040H-H
  • Size 1040H
  • Cplg Wt (kg) 3.4
  • Gap Min (mm) 1.5
  • Dimension C (mm) 50.8
  • Basic Torque (kg-cm) 2304
  • Dimension B (mm) 104.6
  • Gap Max (mm) 4.5
  • Dimension E (mm) 70
  • Bore Diameter Min (mm) 12
  • Hp Per 100 rpm 3.22
  • Dimension A (mm) 117.5
  • Lube Wt (kg) 0.05
  • Gap Normal (mm) 3
  • Dimension D (mm) 57.1
  • Bore Diameter Max (mm) 43
  • Max. Speed (rpm) 4500
  • Type Hub Taper Grid Coupling
SKU: A0148872

KCP 1040H-H Grid Coupling Hub

1040H-H Grid Coupling Hub

$80.27
