Description

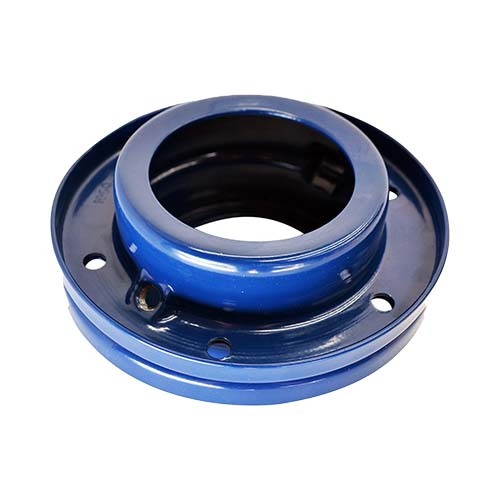

Vertical Split Steel Cover Taper Grid Coupling

  • Type V cover, vertical steel cover.
  • Best choice for high operating speeds.
  • Allows easy access to the grid spring.
  • Steel grid cover for strength.

*** Cover Only ****

About KCP Taper Grid Coupling

  • Taper Grid Couplings are recognizable due to their unique steel flexible grid running through the tapered hubs.
  • The benefits of the Grid Coupling are reduced vibration and shock loads.
  • The compact size of shaft-to-shaft couplings.
  • Handle torque capacity due to high strength hardened alloy steel construction
  • Deflect torsionally for normal shock or vibratory loads.
  • Capacity for misalignment without producing the detrimental side loads.
  • Designed with a trapezoidal cross-section and tempered for spring hardness.
  • Increase in strength rating and provide reserve strength for a longer part life.
  • Easy to fit the trapezoidal grids into the slots of the hub and short time of installation.
  • Free to rock, pivot, and float.

Specifications

  • AIMS SKU A0148884
  • Brand KCP
  • Model Number 1020V
  • Size 1020
  • Gap Max (mm) 4.5
  • Dimension E (mm) 24.2
  • Bore Diameter Min (mm) 12.7
  • Hp Per 100 rpm 0.68
  • Dimension B (mm) 98
  • Lube Wt (kg) 0.03
  • Gap Normal (mm) 3
  • Dimension D (mm) 39.7
  • Bore Diameter Max (mm) 30
  • Cover Profile Vertical
  • Dimension A (mm) 111.1
  • Cplg Wt (kg) 2
  • Gap Min (mm) 1.5
  • Dimension C (mm) 47.5
  • Basic Torque (kg-cm) 486
  • Max. Speed (rpm) 6000
  • Type Cover Taper Grid Coupling
SKU: A0148884 On Sale

KCP 1020V T20 Vertical Cover Assembly Taper Grid Coupling

Vertical Split Steel Cover Taper Grid Coupling

$48.04
$96.07
