Description

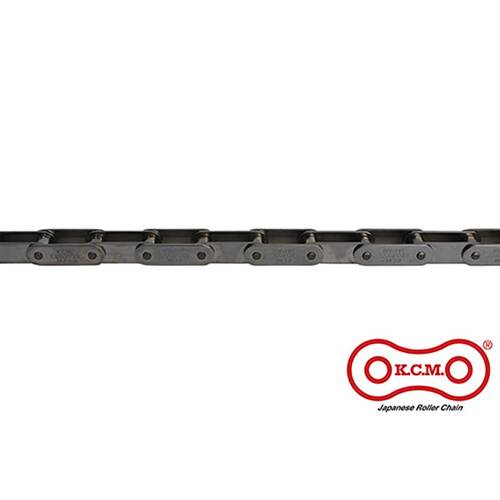

KCM Roller Chain Double Pitch Nickel Plated

A Double-pitch roller chain, whose pitch is doubled compared to a standard roller chain.

  • Available in different chain numbers

Features:

  • Attractive nickel-plated appearance and corrosion resistance
  • Maximum allowable load: About 15% lower than that of standard steel chain
  • Operating range: -10°C to +60°C
  • Usable instead of most steel chains and chains with attachments

About KCM

KCM is an exclusive roller chain manufacturer certified by ISO 9001 (International Quality Management and Assurance Standard). Using state-of-the-art manufacturing and quality assurance technology, KCM strives to maintain its world-recognized quality products. KCM roller drives are used in a broad range of industries to transmit and drive various equipment.

AIMS Industrial Supplies is an authorised roller chain supplier in Australia.
If you need assistance in selecting the right chain, please refer to the dimensions or contact our office.

Specifications

  • AIMS SKU A0066939
  • Brand KCM
  • Model Number C2050RIVN
  • Chain Number C2050
  • Links of 1 unit (mm) 96
  • Link Plate Height H (mm) 14.6
  • Pin (A+B) L2 (mm) 22.3
  • Pin A (mm) 10.17
  • Width Between Inner Plates W (mm) 9.53
  • Chain Pitch 1-1/4 in
  • Average Tensile Strength kgf (kN) 2,850 (27.9)
  • Approx. Weight (kg/m) 0.79
  • Link Plate Thickness T (mm) 2
  • Pin (A+A) L1 (mm) 20.35
  • Pin Diameter d (mm) 5.09
  • Chain Length 10 ft
  • Features Double Pitch
  • Maximum Allowable Load kgf (kN) 450 (4.41)
  • Roller Type S
  • Pin Offset L (mm) 23.05
  • Pin B (mm) 12.13
  • Roller Diameter D (mm) 10.16
  • Roller Chain Type Riveted
  • Type Roller Chain
  • Material Nickel Plated
SKU: A0066939

KCM C2050 Roller Chain 1-1/4" Double Pitch Nickel Plated - Box of 10 Foot

KCM Roller Chain Double Pitch Nickel Plated

$111.13
