Specifications

AIMS SKU A0134925
Length (mm) 30
Pitch (mm) 1.25
Recommended Tightening Torque Hdg (nm) 6
Tensile Strength (kn) 32.8
Minimum Proof Load (kn) 8.24
Stress Area (mm²) 36.6
Size M8
Shear Strength (kn) 8.2
Core Area (mm) 32.8
Minimum Stress Under Proof Load (mpa Or N/mm²) 225
Proof Strength (kn) 14.6
Minimum Ultimate Tensile Load (kn) 14.6
Minimum Tensile Stress (mpa Or N/mm²) 400

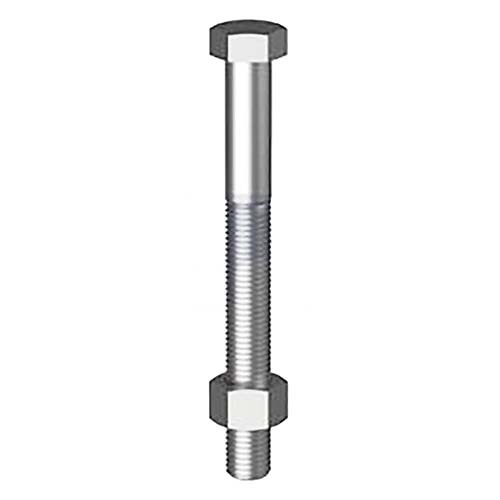

• Type Hex Bolt and Nut
• System of Measurement Metric
• Material Low Tensile Steel
• Finish Hot Dip Galvanised
• Class 4.6
