Description
***Allow one week to make up set.***

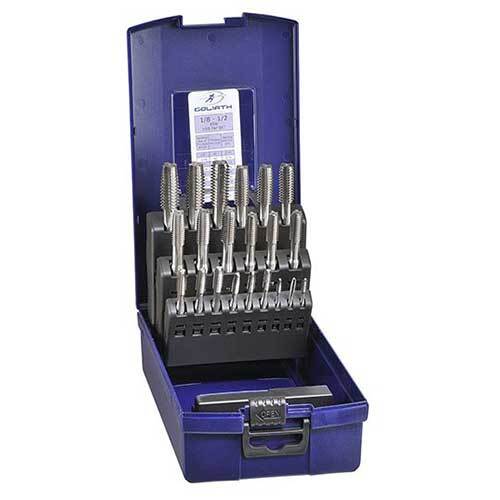

Goliath BSW Tap Set - HSS
- 21pieces boxed set including taper, intermediate & bottom of each size.
Contents
Title | Qty |
---|---|
1/8" x 40 BSW Taper HSS Tap - Goliath | 1 |
1/8" x 40 BSW Intermediate HSS Tap - Goliath | 1 |
1/8" x 40 BSW Bottoming HSS Tap - Goliath | 1 |
3/16" x 24 BSW Taper HSS Tap - Goliath | 1 |
3/16" x 24 BSW Intermediate HSS Tap - Goliath | 1 |
3/16" x 24 BSW Bottoming HSS Tap - Goliath | 1 |
1/4" x 20 BSW Taper HSS Tap - Goliath | 1 |
1/4" x 20 BSW Intermediate HSS Tap - Goliath | 1 |
1/4" x 20 BSW Bottoming HSS Tap - Goliath | 1 |
5/16" x 18 BSW Taper HSS Tap - Goliath | 1 |
5/16" x 18 BSW Intermediate HSS Tap - Goliath | 1 |
5/16" x 18 BSW Bottoming HSS Tap - Goliath | 1 |
3/8" x 16 BSW Taper HSS Tap - Goliath | 1 |
3/8" x 16 BSW Intermediate HSS Tap - Goliath | 1 |
3/8" x 16 BSW Bottoming HSS Tap - Goliath | 1 |
7/16" x 14 BSW Taper HSS Tap - Goliath | 1 |
7/16" x 14 BSW Intermediate HSS Tap - Goliath | 1 |
7/16" x 14 BSW Bottoming HSS Tap - Goliath | 1 |
1/2" x 12 BSW Taper HSS Tap - Goliath | 1 |
1/2" x 12 BSW Intermediate HSS Tap - Goliath | 1 |
1/2" x 12 BSW Bottoming HSS Tap - Goliath | 1 |
About HSS Straight Flute Short Machine and Hand Taps
- These general-purpose taps are ideal for creating new threads in a wide variety of materials.
- Goliath HSS taps provide a high hardness to toughness ratio, compressive and tensile strength, good abrasion resistance, and resistance to micro-chipping, ensuring a long tool life.
About BSW British Standard Whitworth
- The angle of the thread is 55 degrees as opposed to 60 degrees in Metric and Unified threads.
- This thread form was developed by Sir Joseph Whitworth in 1841.
- The thread form has rounded.
About Intermediate Taps
- Intermediate Taps have a lead of four threads and are used in most general-purpose applications to cut a thread true to a pre-drilled pilot hole.
- Manufactured from HSS this general-purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
About Taper Taps
- Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high-precision holes.
- Manufactured from HSS this general-purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
About Bottoming Taps
- Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
- Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap.
- Manufactured from HSS this general-purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
Specifications
- AIMS SKU A0159830
- Brand Goliath
- Model Number ETDS04
- Barcode Number 9349009021236
- Type Tap Set
- Tap Lead/s T,I,B
- Number of Taps 21
- Tap Material HSS
- Thread Type BSW
SKU: A0159830
Goliath ETDS04 1/8" - 1/2" BSW Tap Set - HSS,
Goliath BSW Tap Set - HSS
$597.66
SAVE $292.86 (33%)
Notify me when back in stock
