Description
***Allow one week to make up set.***

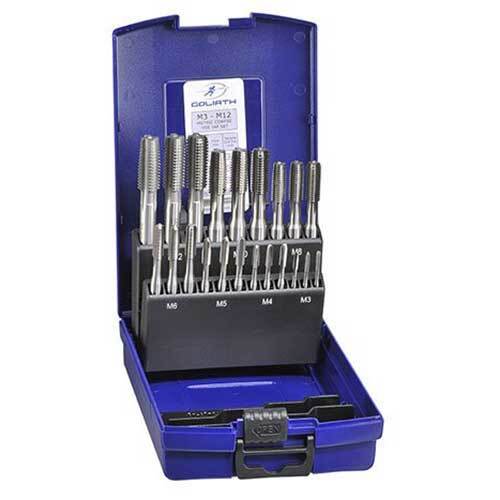

Goliath Metric Coarse Tap Set - HSS
- 21pieces boxed set including taper, intermediate & bottom of each size.
Contents
Title | Qty |
---|---|
3 x 0.5mm MC Taper HSS Tap - Goliath | 1 |
3 x 0.5mm MC Intermediate HSS Tap - Goliath | 1 |
3 x 0.5mm MC Bottoming HSS Tap - Goliath | 1 |
4 x 0.7mm MC Taper HSS Tap - Goliath | 1 |
4 x 0.7mm MC Intermediate HSS Tap - Goliath | 1 |
4 x 0.7mm MC Bottoming HSS Tap - Goliath | 1 |
5 x 0.8mm MC Taper HSS Tap - Goliath | 1 |
5 x 0.8mm MC Intermediate HSS Tap - Goliath | 1 |
5 x 0.8mm MC Bottoming HSS Tap - Goliath | 1 |
6 x 1mm MC Taper HSS Tap - Goliath | 1 |
6 x 1mm MC Intermediate HSS Tap - Goliath | 1 |
6 x 1mm MC Bottoming HSS Tap - Goliath | 1 |
8 x 1.25mm MC Taper HSS Tap - Goliath | 1 |
8 x 1.25mm MC Intermediate HSS Tap - Goliath | 1 |
8 x 1.25mm MC Bottoming HSS Tap - Goliath | 1 |
10 x 1.5mm MC Taper HSS Tap - Goliath | 1 |
10 x 1.5mm MC Intermediate HSS Tap - Goliath | 1 |
10 x 1.5mm MC Bottoming HSS Tap - Goliath | 1 |
12 x 1.75mm MC Taper HSS Tap - Goliath | 1 |
12 x 1.75mm MC Intermediate HSS Tap - Goliath | 1 |
12 x 1.75mm MC Bottoming HSS Tap - Goliath | 1 |
About HSS Straight Flute Short Machine and Hand Taps
- These general-purpose taps are ideal for creating new threads in a wide variety of materials.
- Goliath HSS taps provide a high hardness to toughness ratio, compressive and tensile strength, good abrasion resistance, and resistance to micro-chipping, ensuring a long tool life.
About Metric Coarse
- The angle of the thread is 60 degrees. The crest is flat and the thread has clearance at the root allowing the external thread and internal thread to engage well.
- A larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
- The major diameter of external thread and pitch is specified by a simple numerical value (most commonly measured in millimeters).
About Intermediate Taps
- Intermediate Taps have a lead of four threads and are used in most general-purpose applications to cut a thread true to a pre-drilled pilot hole.
- Manufactured from HSS this general-purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
About Taper Taps
- Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high-precision holes.
- Manufactured from HSS this general-purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
About Bottoming Taps
- Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
- Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap.
- Manufactured from HSS this general-purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
Specifications
- AIMS SKU A0159827
- Brand Goliath
- Model Number ETDS01
- Barcode Number 9349009021229
- Type Tap Set
- Tap Lead/s T,I,B
- Number of Taps 21
- Tap Material HSS
- Thread Type Metric
SKU: A0159827
Goliath ETDS01 M3 - M12 Metric Coarse Tap Set - HSS,
Goliath Metric Coarse Tap Set - HSS
$504.44
SAVE $247.18 (33%)
