Description

** This belt can be ordered in a custom width of your choice. Please contact us for a quotation. **

Descriptions

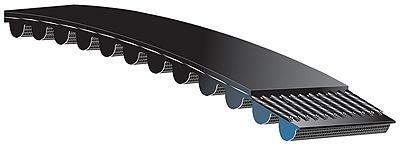

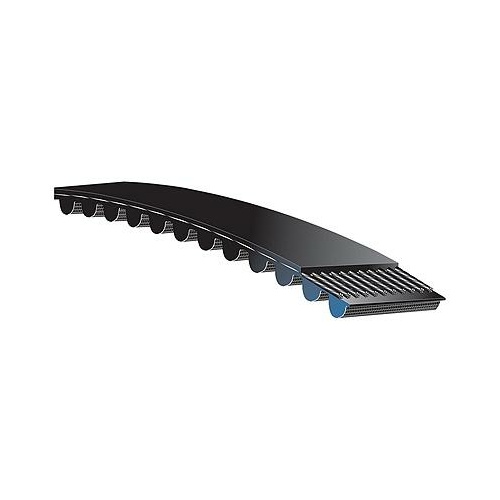

PowerGrip® HTD® 8M and 14M belts are used in high performance drives in the machine tool, paper and textile industries where durability and low maintenance are required.
PowerGrip® HTD® 3M and 5M belts are suitable for domestic appliances, once machines, electric hand tools and for applications in the processing and chemical industry.

Construction

Curvilinear (round) tooth form improves stress distribution and allows higher overall loading compared to trapezoidal tooth forms
Fibreglass tensile cords
Tough nylon facing protects and reinforces the tooth surface
Durable elastomeric backing protects against environmental pollution as well as frictional wear if power is transmitted from the back of the belt

Advantages

No slippage. PowerGrip® HTD® belt teeth mesh smoothly with pulley grooves, reducing speed variations
Wide speed range, 3M and 5M are designed for belt speeds up to 80m/s
Constant angular velocity
Economical operation. No lubrication needed, no need for adjustment due to stretch and wear.
High mechanical efficiency. The belt construction minimises heat build-up and since friction is not required to transmit the load, belt tensions are reduced
Most 14M PowerGrip® HTD® belts now meet the ISO 9563 static conductive standard
Maintenance free
Back idlers can be used

Temperature Range
