Description

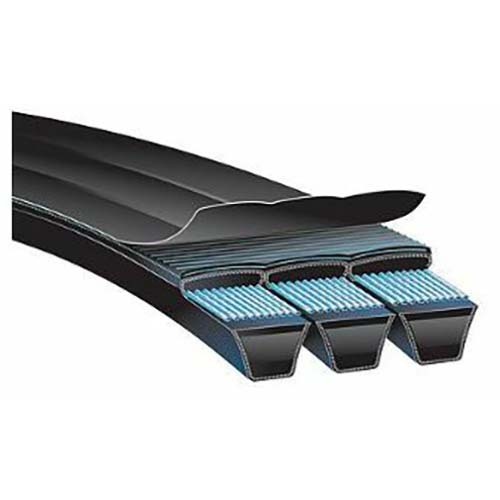

Powerband - Classical Section - Heavy Duty Belt

Gates Hi-power II Powerband offers a solution for drives where single belts vibrate, turn over or jump off the pulleys
Hi-power II Powerband is especially developed for drives subjected to pulsating loads. It consists of several V-belts joined together by a permanent, high strength tie band, thus being tougher than all the belts taken separately.

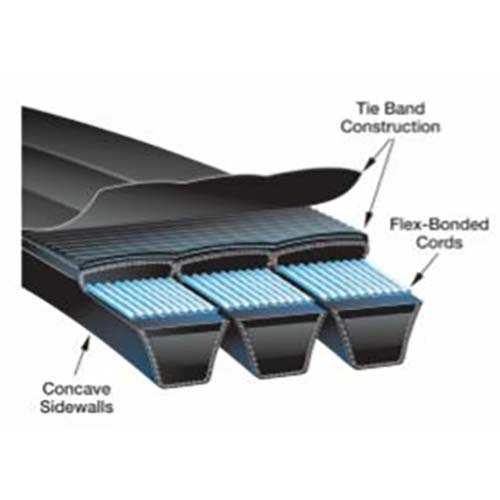

Construction

Classical cross-section
Strong tie band joins the back of all belts
Fibre-loaded compound for improved belt stability
Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
Flex-Weave cover is a patented fabric construction for longer life, providing extended protection to the belt core from oil, dirt and heat
Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
Static conductive - ISO 1813 and RMA IP3-3

Advantages

Premium performance
Better resistance to vibrations
High stability and smooth running on the toughest drives
Premium performance
Excellent performance/cost ratio
Suitable for dirty/dusty environments
Match free system: all sizes meet Gates V80 tolerances, can be installed without matching
Back idlers can be used
Tolerates mild clutching or drive slip

Temperature Range
