Description

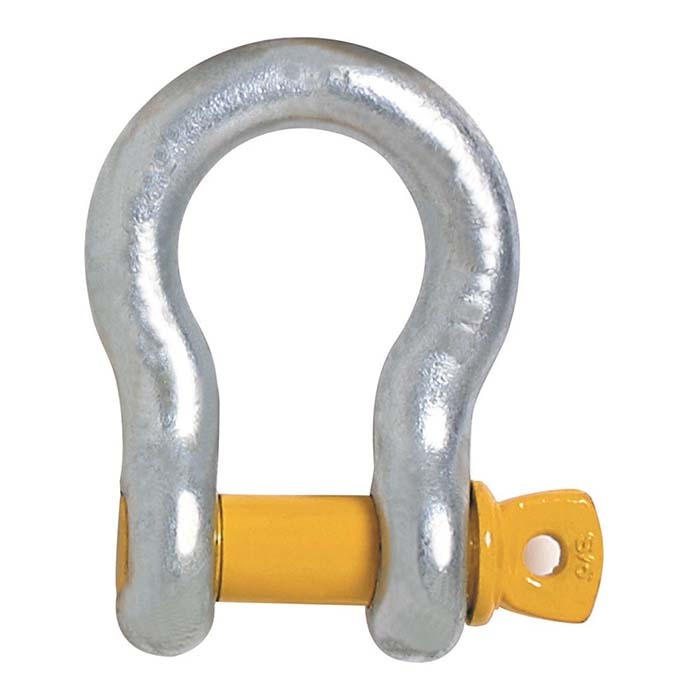

Beaver Screw Pin Anchor Bow Shackle

  • These yellow pin Grade S screw pin shackles are manufactured by Beaver.
  • Comply with AS 2741.
  • Screw pin shackles are used mainly for non-permanent applications.
  • The Grade S shackles are recommended where high strength is required such as lifting, towing, and 4WD applications.

Specifications

  • AIMS SKU A0192245
  • Brand Beaver
  • Model Number 242313
  • WLL (kg) 2000
  • Shape Bow

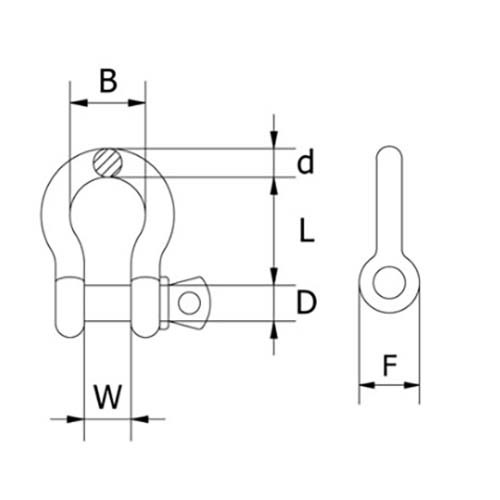

  • Pin Diameter (D) 16mm
  • Weight (kgs) 0.33
  • Closing Method Screw
  • Size in (mm) 13 x 16
  • Inside Width (W) 21mm
  • Inside Length (L) 33mm
  • Width of Bow (B) 48mm
  • Diameter Boss (F) 33mm
  • Type Bow Shackle
  • Grade Grade S
SKU: A0192245

Beaver Grade S Screw Pin Bow Shackle - 13mm x 16mm x 2000kg 2.00T WLL

Beaver Screw Pin Anchor Bow Shackle

$5.60
