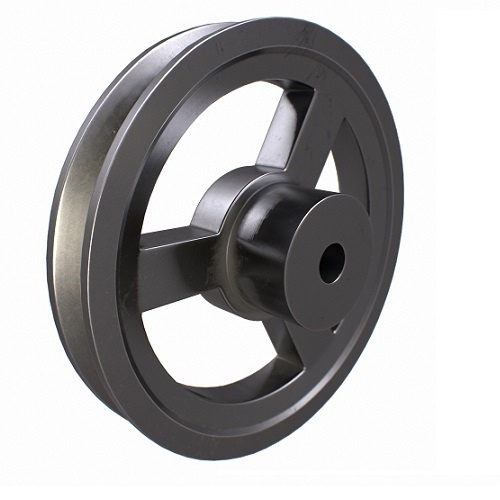

B Section Aluminium V-Pulley, 2 in PCD, 1 Groove, 1 in Bore

$18.97
$18.97
Inc. GST

Available

These B section aluminium V-pulleys suit B section V-belts. They have a finished bore with a grub screw, and the range covers 112 variants: 2 to 18 in PCD (50 to 457 mm), 1 to 2 grooves, in 1/2, 5/8, 3/4 and 1 in bores.

The 5/8, 3/4 and 1 in bores have a keyway, and the 1/2 in bore does not. Every pulley has a 5/16 in UNC grub screw. Other bore sizes can be made to order: contact AIMS with your shaft size.

The PCD is the diameter the belt runs on and sets the speed ratio of the drive. Use one groove for each belt.

Where this product is used

  • Light-duty fan, pump and small machinery drives
  • Workshop machinery and general drives
  • Replacement pulleys on existing B section belt drives
  • Drives where a light pulley is wanted

Features

  • Aluminium B section V-pulley with a finished bore and grub screw
  • 1 to 2 grooves, 2 to 18 in PCD
  • 1/2, 5/8, 3/4 and 1 in bores, keyway on the 5/8, 3/4 and 1 in sizes
  • Outside diameter, face width, hub diameter and overall length listed where available
  • Solid disc or spoked body, shown for each model
  • Maximum peripheral speed 1200 m/min

Key specifications

Specification Detail
Belt section B
Material Aluminium
Bore type Finished bore, grub screw fixing (5/16 in UNC)
Bore sizes 1/2 in, 5/8 in, 3/4 in and 1 in
Keyway No keyway on 1/2 in; 3/16 in key on 5/8 and 3/4 in; 1/4 in key on 1 in
Grooves 1 to 2 grooves
PCD 2 to 18 in (50 to 457 mm)
Body Solid disc or spoked, by model (see the model details)
Maximum peripheral speed 1200 m/min

Sizes available

View all 32 sizes
PCD (in) Grooves OD (mm) Width (mm) Bores (in)
2 1 63 24 1/2, 5/8, 3/4, 1
2 2 63 44 1/2, 5/8, 3/4, 1
2.5 1 76 24 1/2, 5/8, 3/4, 1
3 1 89 24 1/2, 5/8, 3/4, 1
3 2 89 45 1/2, 5/8, 3/4, 1
3.5 1 102 24 1/2, 5/8, 3/4, 1
3.5 2 102 45 1/2, 5/8, 3/4, 1
4 1 114 24 1/2, 5/8, 3/4, 1
4 2 114 45 1/2, 5/8, 3/4, 1
4.5 1 127 24 1/2, 5/8, 3/4, 1
4.5 2 127 45 1/2, 5/8, 3/4, 1
5 1 140 24 1/2, 5/8, 3/4, 1
5 2 140 45 1/2, 5/8, 3/4, 1
5.5 1 152 24 1/2, 5/8, 3/4, 1
5.5 2 152 45 1/2, 5/8, 3/4, 1
6 1 165 24 1/2, 5/8, 3/4, 1
6 2 165 45 1/2, 5/8, 3/4, 1
7 1 190 24 1/2, 5/8, 3/4, 1
7 2 190 45 1/2, 5/8, 3/4, 1
8 1 216 24 1/2, 3/4, 1
8 2 216 45 1/2, 5/8, 3/4, 1
9 1 241 24 1/2, 3/4, 1
9 2 241 45 1/2, 5/8, 3/4, 1
10 1 267 24 1/2, 3/4, 1
10 2 267 45 1/2, 5/8, 3/4, 1
12 1 318 24 1/2, 5/8, 3/4, 1
12 2 318 45 1/2, 5/8, 3/4, 1
14 1 368 24 1/2, 3/4, 1
16 1 419 24 1/2
16 2 419 45 3/4
18 1 470 24 1
18 2 470 45 1/2

Selecting and fitting

Choose the pulley by belt section (B), pitch circle diameter, number of grooves and bore. Divide the driven PCD by the driver PCD to find the speed ratio.

Match the bore to your shaft. The 5/8, 3/4 and 1 in bores take a key; the 1/2 in bore relies on the grub screw. Contact AIMS if you need a bore size that is not listed.

Fit the pulley on the shaft with the key (where fitted), set it in line with its mating pulley and tighten the grub screw onto the shaft. Check the alignment with a straight edge before fitting the belts.

Set belt tension to the belt maker's recommendation, and check it again after a few hours of running.

Dimensions are as listed for each model and are for reference. Contact AIMS to confirm a measurement if it is critical to your application.
Product Highlights −

B Section Aluminium V-Pulley, Finished Bore, 1 and 2 Grooves, 2 to 18 in PCD.

These B section aluminium V-pulleys suit B section V-belts. They have a finished bore with a grub screw, and the range covers 112 variants: 2 to 18 in PCD (50 to 457 mm), 1 to 2 grooves, in 1/2, 5/8, 3/4 and 1 in bores.

Resources

File icon
Finer-Power-Pulleys-Catalogue
