Specifications
- AIMS SKU A0104864
- Brand FYH
- Model Number SA204-12/FYH
- Nominal Bearing Outer (d) Inch) 1.85
- Shaft Diameter (d) inch 3/4
- S (inch) 0.276
- Dynamic Radial Load Rating 12.8
- Nominal Bearing Bore (d1) inch 1.311
- Static Radial Load Rating 6.65
- r (min) inch 0.039
- Nominal Inner Ring Width (B) inch 0.787
- S2 (inch) 0.189
- C (inch) 0.551
- Type Ball Bearing Inserts
- System of Measurement Imperial
- Item Type Eccentric Ball Bearings
- Series SA200
SKU: A0104864

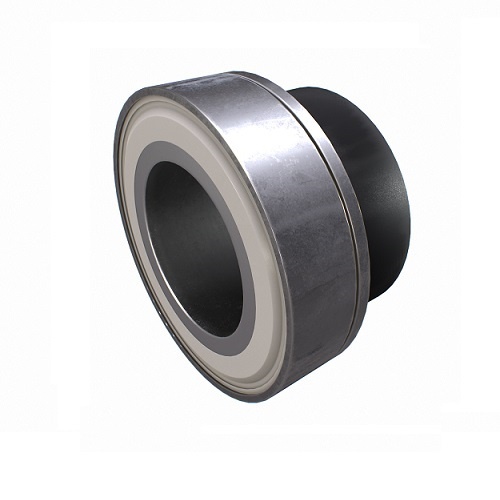

FYH Ball Bearing Inserts SA204-12 Eccentric Collar, 3/4'' Shaft Diameter
Ball Bearing Inserts SA200 (AEL) Series Lock Collar
$20.22
