Description

Wide Inner Ring Housings (Extra Light Two Bolt Flange Bearing Housing)

  • Commonly used bearing housings designed for the corresponding wide inner bearing to be installed.
  • This range is well known for its versatility between the bearing and housing options as well as ease of installation.

Specifications

  • AIMS SKU A0147603
  • Brand FYH
  • Model Number LF204/FYH

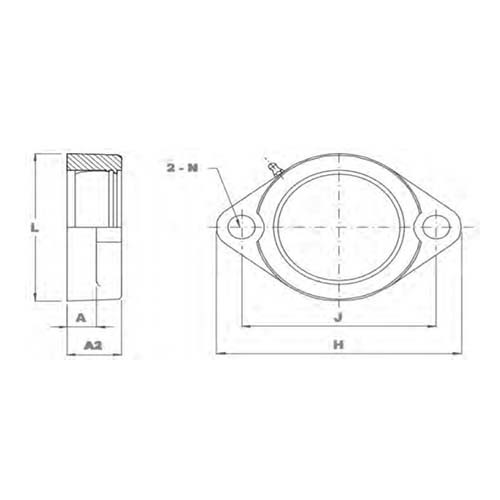

  • A1 (mm) 11
  • Dynamic Load (cr) Kn 12.8
  • B1 ( Mm) 29.5
  • Alf A01 (inch) 1 5/16
  • Blf A0 (inch) 1 5/32
  • L (inch) 2 3/8
  • H (inch) 3 17/32
  • A1 (inch) 7/16
  • L (mm) 60
  • Shaft Diameter (d) mm 20
  • S (mm) 7
  • System of Units Metric/Imperial
  • Bolt Size ( Mm) M8
  • B1 (inch) 1.161
  • B ( Mm) 25
  • N (mm) 10
  • J (mm) 71.5
  • A2 (mm) 11
  • B (inch) 0.984
  • H (mm) 90
  • A (mm) 20
  • S (inch) 0.276
  • Static Load (c0r) Kn 6.65
  • Bolt Size (inch) 5/16
  • A01 ( Mm) 33.5
  • A0 ( Mm) 29
  • N (inch) 25/64
  • J (inch) 2 13/16
  • A2 (inch) 7/16
  • Factor Fo 13.2
  • Shaft Diameter (d) inch 3/4
  • a (inch) 25/32
  • Type Bearing Housing
  • System of Measurement Imperial
  • Material Cast Iron
  • Item Type Extra Light Two Bolt Flange
SKU: A0147603

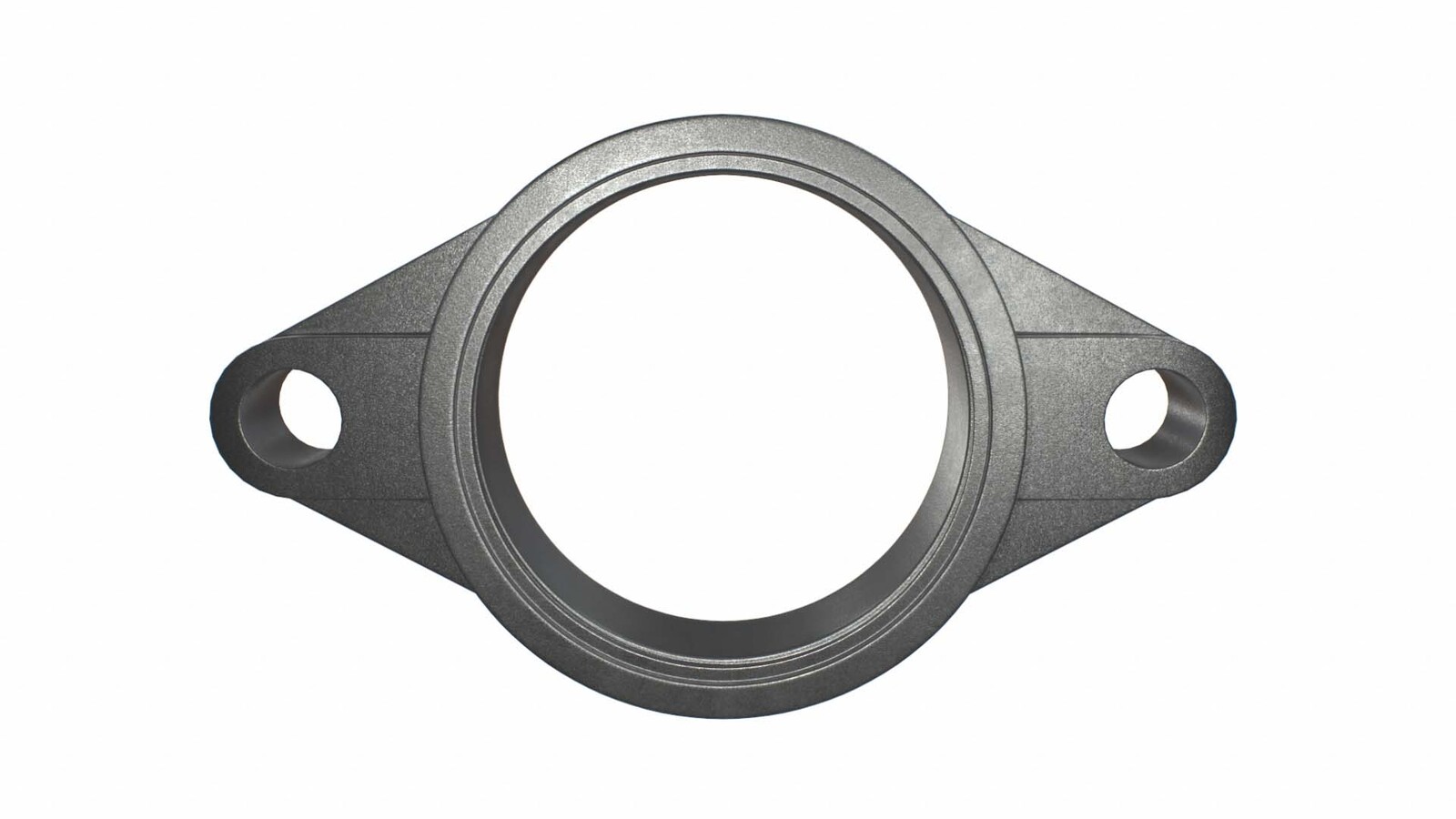

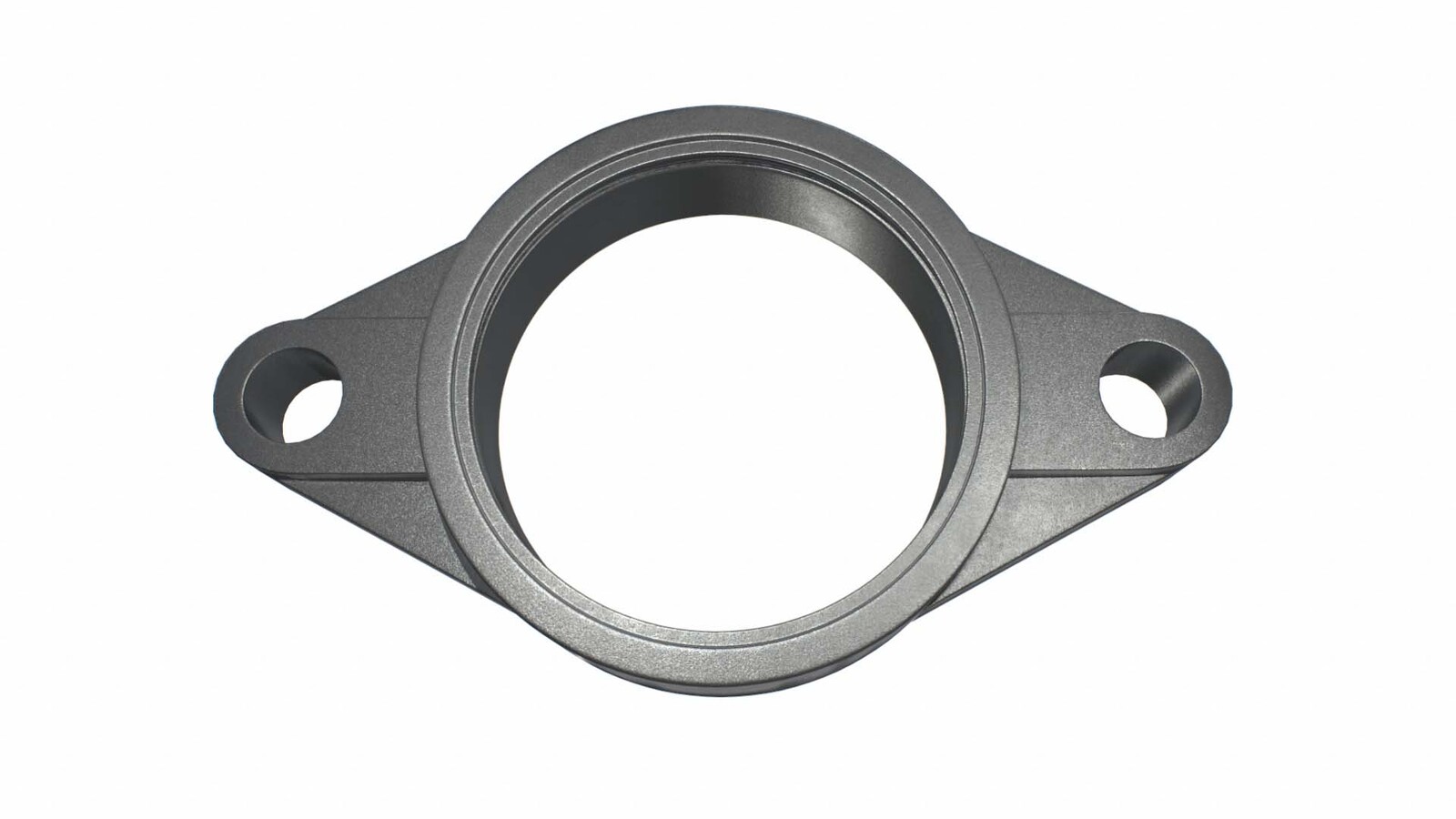

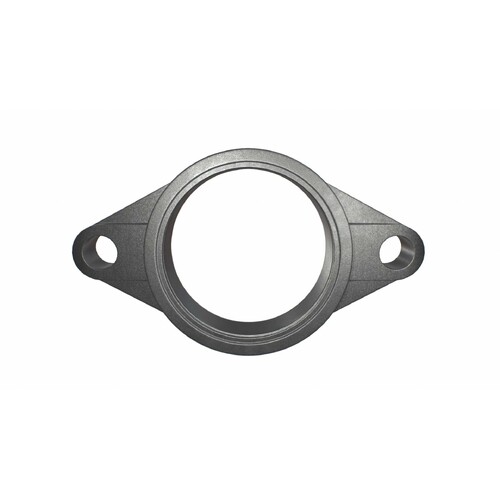

FYH LF204 Extra Light 2-Bolt Flange Bearing Housing To Suit 3/4" Shaft

Extra Light Two Bolt Flange Cast Iron Bearing Housing

$9.90
