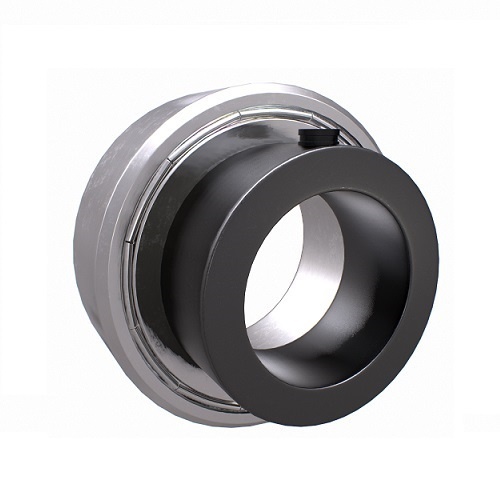

FYH Ball Bearing Inserts SAA208 Eccentric Collar, 40mm Shaft Diameter

Description

***Catalogue dimensions are reference only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.***

Wide Inner Ring Bearings

Commonly used ball bearings designed for installation into the corresponding Wide Inner Ring Housings.
This range is well known for its versatility between bearing and housing options as well as ease of installation.
CS200 series cylindrical lock collar straight outer, clyndrical out side bearing flush back, eccenttric shaft locking collar.

Specifications

AIMS SKU A0106764

Brand FYH

Model Number SAA208/FYH

Shaft Diameter (mm) 40

Nominal Bearing Outer (mm) 80

Nominal Inner Ring Width (mm) 27

Type Ball Bearing Inserts
System of Measurement Metric
Series CSA200/SAA200
Item Type Eccentric Ball Bearings

Calculate Shipping

Resources

Technical Data Sheet

Nachi FYH Bearing Range Catalogue
