Description

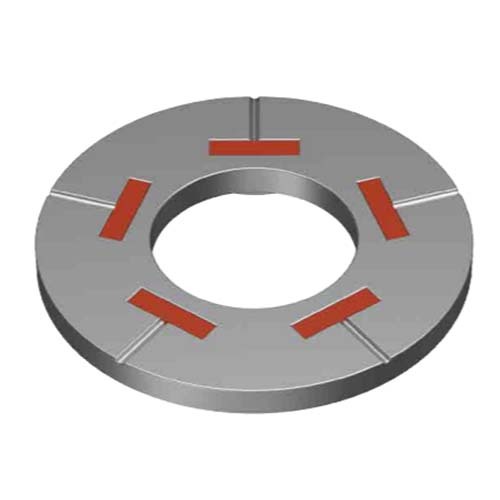

Durasquirt DTI Washer Class 8.8 Mechanical Galvanised

  • ASTM F959M / Class 8.8
  • Mechanical Galvanised.
  • DTI (Direct Tension Indicator).

Features

  • The original Squirter® Washer has been replaced by the DuraSquirt® DTI (Direct Tension Indicator).
  • A durable squirt indication that lasts on the connection.
  • Engineered to withstand the elements- from wind, heavy rain and extreme temperatures.
  • To prove how much DuraSquirt® DTI Washers can withstand, it was run through an automated dishwasher for 1 year.
  • Despite the daily punishment of heated turbulent water and detergent, the squirt media was still visible.
  • Complete indication occurs after minimum tension has been achieved.
  • Simple to use and easy for installers and inspectors to see when the required tension is achieved.
  • Not affected by poor torque tension correlation factors such as weathering, poor lubrication and damaged threads.
  • A clear visual indication when the bolt assembly is tensioned correctly by “squirting” bright orange indicator.
  • By using DuraSquirt® DTI Washers the installer is alerted to poor quality AS1252 assemblies and other issues in the connection.
  • Independently tested from -50 to 104 degrees Celsius.

Specifications

  • AIMS SKU A0135436
  • Diameter (mm) M12
  • Thickness (mm) 2.5
  • Min Bolt Tension (kn) As Per As4100 (mm) 51
  • Outer Diameter (mm) 27
  • Size M12
  • No. Of Bumps 4
  • Inner Diameter (mm) 12.3
  • Type Durasquirt Washer
  • System of Measurement Metric
  • Finish Mechanical Galvanised
  • Class 8.8
SKU: A0135436 On Sale

M12 x 27 x 2.5mm Durasquirt DTI Washer Class 8.8 Mechanical Gal - Box of 100

Durasquirt DTI Washer Class 8.8 Mechanical Galvanised

$264.14
$330.17
