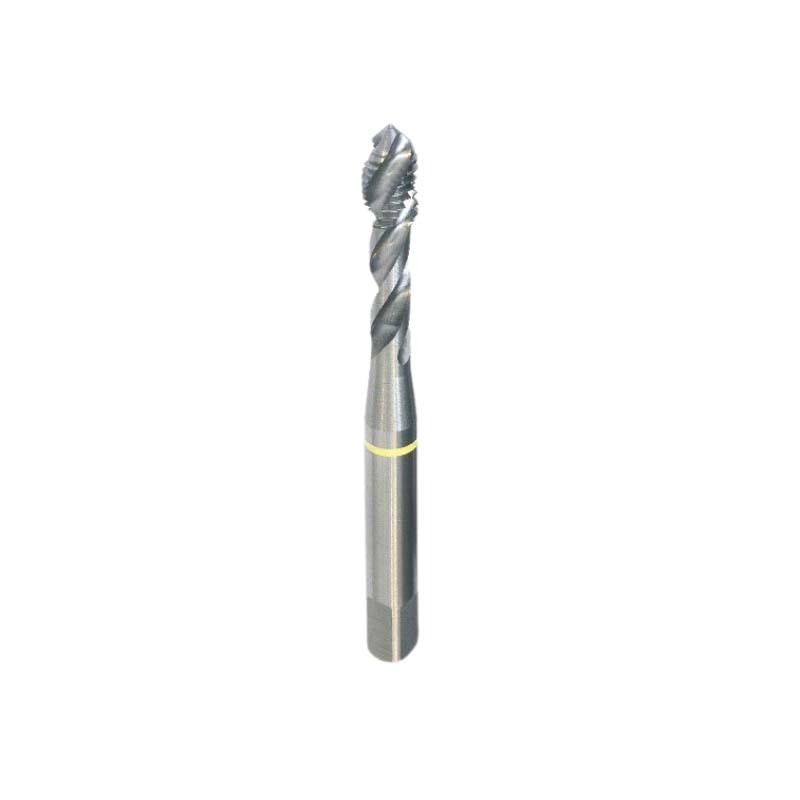

Bordo HSSE-V3 Yellow Band Spiral Flute Tap

  • HSSE-V3 Yellow Band Spiral Flute Tap.
  • HSSE-V3 HSSE with 3% Vanadium high performance tap.
  • Optimised for machining Aluminium and Aluminium Alloys.
  • Spiral flute with 40° helix angle.
  • Designed for tapping blind holes where the right hand spiral forces swarf out of the hole and prevents clogging which may cause breakage or spoiled threads.
  • Designed to withstand the high stress and high heat associated with CNC production tapping.
  • Optimised geometry to manage difficult long chip formation and material which has tendencies to stick to the tool.
  • For machining materials with Hardness < 200 HB: Tensile Strength <700 N/mm².

Specifications

  • AIMS SKU A0193197
  • Brand Bordo
  • Model Number 3254-3.00
  • Barcode Number 9326518094319
  • Point Type Spiral Flute
  • Diameter (mm) 3
  • Pitch (mm) 0.5
  • Thread Form Type Metric Coarse
  • Overall Length (OL) mm 56
  • Flute Type Spiral 40° Helix
  • Sub Brand Colour Band
  • Surface Finish Bright
  • Type Spiral Flute Tap
  • Material HSSE-EV
SKU: A0193197

Bordo 3 x 0.5mm HSSE-V3 Yellow Band Spiral Flute Tap 3254-3.00

Bordo HSSE-V3 Yellow Band Spiral Flute Tap

$24.57
RRP $28.16
SAVE $3.59 (13%)
