Description

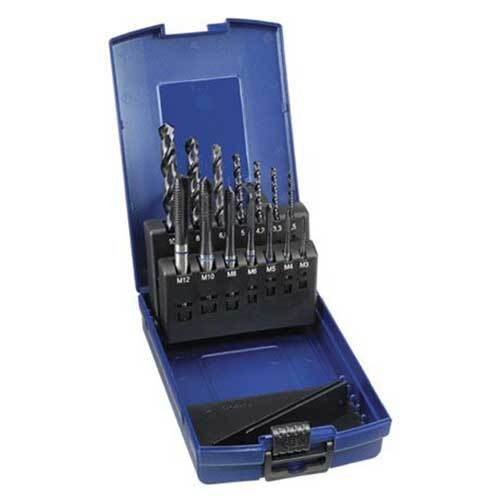

Metric Blue Band Intermediate Tap & Drill Set
- M3 - M12 Metric Coarse Intermediate Titanium Aluminium Nitride Coated Tap and Drill Set.
About Metric Coarse
- The angle of the thread is 60 degrees.
- The crest is flat and the thread has clearance at the root allowing the external thread and internal thread to engage well.
- A larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
- The major diameter of external thread and pitch is specified by a simple numerical value (most commonly measured in millimeters).
About Intermidiate Taps
- Have a lead of four threads and are used in most general purpose applications to cut a thread true to a pre-drilled pilot hole.
About Machining of Stainless Steel
- The machining of stainless steel is difficult due to its work hardening properties toughness and poor thermal conductivity which places high demands on the cutting tools.
About Blue Band Series
- The Blue Band Series has been specifically designed to suit these difficult machining requirements.
- Blue band taps are manufactured from HSSE-V3 and are TiAlN coated.
- Blue Band Tapping Drills are manufactured from HSS-Co and TiAlN coated. TiAlN coating increases tool surface hardness to 87Rc.
- For machining materials with Hardness < 350 HB: Tensile Strength <1250 N/ mm2.
Contents
Title | Qty |
---|---|
3 x 0.5mm HSSE-V3 TiAlN Coated Blue Band Spiral Point Tap | 1 |
4 x 0.7mm HSSE-V3 TiAlN Coated Blue Band Spiral Point Tap | 1 |
5 x 0.8mm HSSE-V3 TiAlN Coated Blue Band Spiral Point Tap | 1 |
6 x 1mm HSSE-V3 TiAlN Coated Blue Band Spiral Point Tap | 1 |
8 x 1.25mm HSSE-V3 TiAlN Coated Blue Band Spiral Point Tap | 1 |
10 x 1.5mm HSSE-V3 TiAlN Coated Blue Band Spiral Point Tap | 1 |
12 x 1.75mm HSSE-V3 TiAlN Coated Blue Band Spiral Point Tap | 1 |
2.5mm HSS Cobalt TiAlN Coated Blue Band Jobber | 1 |
3.3mm HSS Cobalt TiAlN Coated Blue Band Jobber | 1 |
4.2mm HSS Cobalt TiAlN Coated Blue Band Jobber | 1 |
5mm HSS Cobalt TiAlN Coated Blue Band Jobber | 1 |
6.8mm HSS Cobalt TiAlN Coated Blue Band Jobber | 1 |
8.5mm HSS Cobalt TiAlN Coated Blue Band Jobber | 1 |
10.2mm HSS Cobalt TiAlN Coated Blue Band Jobber | 1 |
Specifications
- AIMS SKU A0145333
- Brand Bordo
- Model Number 3150-S1
- Barcode Number 9326518137252
- Type Tap and Drill
- System of Measurement Metric
SKU: A0145333
Bordo 3150-S1 Metric Blue Band Intermediate Tap & Drill Set, 14pcs
Metric Blue Band Intermediate Tap & Drill Set
$810.34
SAVE $118.43 (13%)
