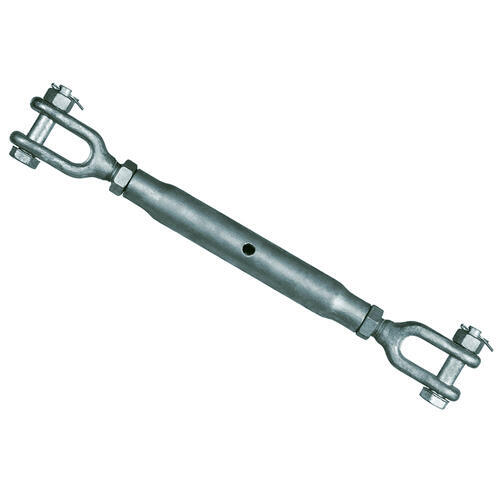

Austlift 24mm Rigging Screw Jaw/Jaw Grade P High Tensile Steel

Description

Austlift Rigging Screw Jaw/Jaw Grade P - High Tensile

Generally used for straight or in-line tensioning in conjunction with wire rope and or chain assemblies when heavy-duty straining and lifting applications are required.
Manufactured from Grade L/P high tensile material quenched and tempered hot-dipped galvanised finish suitable for outdoor use available in metric sizing and jaw end fittings with locknuts.
Meets the design requirements of AS2319 Proof tested to 2 x WLL and minimum brake force is 6 x WLL.
Suitable for industrial lifting purposes.
Individual proof tested.

Specifications

AIMS SKU A0168722

Brand Austlift

Model Number 407024

Size 24 mm

Weight (kg) 4.85

C (mm) 292

A (mm) 356

F (mm) 22

E (mm) 32

D (mm) 42

Working Load Limits Wll (t) 4

N (Close) (mm) 565

O (Open) (mm) 820

Type Rigging Screw
Material High Tensile
Finish Tempered Hot Dipped Galvanised
Grade Grade P
