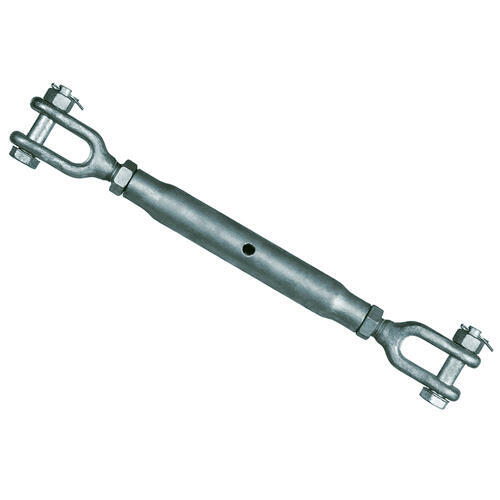

Austlift Rigging Screw Jaw/Jaw Grade S - High Tensile

  • Generally used for straight or in-line tensioning in conjunction with wire rope and or chain assemblies when heavy-duty straining and lifting applications are required.
  • Manufactured from Grade L/P high tensile material quenched and tempered hot-dipped galvanised finish suitable for outdoor use available in metric sizing and jaw end fittings with locknuts.
  • Meets the design requirements of AS2319 Proof tested to 2 x WLL and minimum brake force is 6 x WLL.
  • Suitable for industrial lifting purposes.
  • Individual proof tested.

Specifications

  • AIMS SKU A0168730
  • Brand Austlift
  • Model Number 407116
  • O (Open) (mm) 530
  • D (mm) 27
  • A (mm) 229
  • Size 16 mm
  • N (Close) (mm) 390
  • E (mm) 22
  • C (mm) 194
  • Working Load Limits Wll (t) 2
  • F (mm) 12
  • Weight (kg) 1.4
  • Type Rigging Screw
  • Finish Tempered Hot Dipped Galvanised
  • Grade Grade S
SKU: A0168730

Austlift 16mm Rigging Screw Jaw/Jaw Grade S High Tensile Steel

Austlift Rigging Screw Jaw/Jaw Grade S - High Tensile
