Specifications
- AIMS SKU A0120638
- Brand Seco
- Model Number 00076236
- Barcode Number 76236000000204
- Designation 16ER14W,CP200
- Profile Distance Ex (PDX) mm 1.5
- Threads Per Inch Minimum (TPIN) 14
- Theoretical Cutting Edge Length (L) mm 16.5
- Corner Radius (RE) mm 0.24
- Cutting Edge Count (CEDC) 3
- Profile Included Angle (PNA) deg 55.0 deg
- Tooth Count (NT) 1
- Thread Type (TTP) External
- Inscribed Circle Diameter (IC) mm 9.53
- Insert Thickness (S) mm 3.47
- Profile Distance Ey (PDY) mm 1.2
- Threads Per Inch Maximum (TPIX) 14
- Insert Seat Size Code (SSC) 16
- Insert Hand (IH) Right
- Type Snap-Tap® Thread Turning Insert
- Thread Type (TTP) External
- Grade CP200
SKU: A0120638

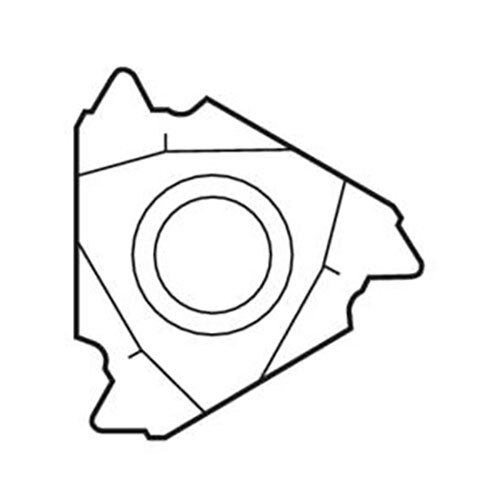

Seco External Snap-Tap® Thread Turning Insert 3.47 x 16.5mm Right 14-14 TPI CP200 Whitworth, BSW Thread 16ER14W,CP200 Pack of 2
Thread Turning Insert 16ER - Whitworth, BSW Thread Grade
$83.13
