Thread Turning Insert 16ER - V Profile 55° Thread Grade-CP500 (A)

  • 16mm cutting edge length.
  • External, right cutting direction.
  • 55 Thread, V Profile 55°.
  • A type chipbreaker, universal.
  • A chipbreaker can be used for applications in a variety of materials and low cutting forces.
  • Partial profile insert.

CP500 Grade

  • Universal very tough micrograin grade for all types of threading in most materials.
  • Excellent for stainless steel and difficult operations.
  • (Ti, Al)N + TiN.

About Seco Thread Turning

  • Our comprehensive selection of thread turning solutions for internal and external applications make it possible to produce high-quality threads in all sizes and profiles.
  • From direct-pressed single-point inserts to innovative tool holders to intuitive software, we have everything you need to increase your productivity and profits.
  • To help take the guesswork out of threading operations, our Thread Turning Wizard software eliminates complicated programs and calculations.
  • Requiring minimal input, the Wizard selects the best holder and inserts for the application, identifies the best operating parameters and then downloads the information to the machine tool’s CNC.

About Seco Snap-Tap® Threading System

  • We use advanced manufacturing processes to produce the precision cutting edges on our Snap-Tap® thread turning tools.
  • The process eliminates the need for secondary grinding or honing operations, which makes these tools a highly economical choice.
  • Pair these tools with our Anti-Twist Toolholders and solid suggestions from our Thread Tuning Wizard software and there’s no thread turning application you can’t handle.
  • Our popular range of Snap-Tap® thread turning tools are available in three insert chipbreaker geometries for the successful machining of steel and stainless steel.
  • While each geometry serves a unique purpose, they all feature the CP500 grade that features a highly wear-resistant PVD coating to provide dependable machining for a large majority of common thread turning applications.
  • The innovative tool holders made for use with Snap-Tap® inserts offer the best possible holding power available for long tool life and high accuracy.
  • They employ an Anti-Twist insert locking system that features a carbide pin in the back of the insert pocket that resists wear and prevents the insert from turning or twisting under pressure during machining.
  • For added insert and tool holder rigidity, a D-style clamp securely pulls the insert down and into the pocket.

Specifications

  • AIMS SKU A0121015
  • Brand Seco
  • Model Number 02444842
  • Barcode Number 44842024000208
  • Designation 16ERAG55-A,CP500

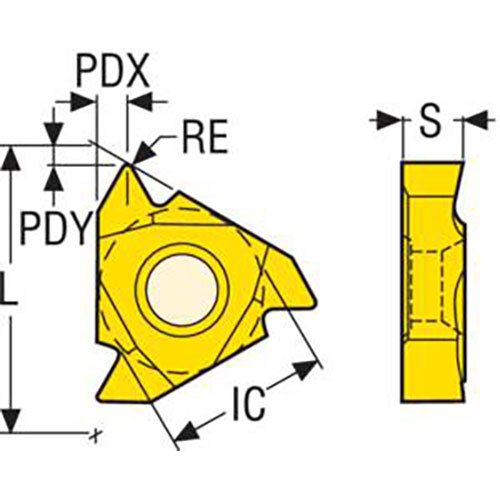

  • Thread Pitch Maximum (TPX) mm 3
  • Threads Per Inch Minimum (TPIN) 48
  • Theoretical Cutting Edge Length (L) mm 16.5
  • Corner Radius (RE) mm 0.08
  • Cutting Edge Count (CEDC) 3
  • Profile Distance Ex (PDX) mm 1.5
  • Thread Pitch Minimum (TPN) mm 0.5
  • Thread Type (TTP) External
  • Inscribed Circle Diameter (IC) mm 9.53
  • Insert Thickness (S) mm 3.47
  • Profile Included Angle (PNA) deg 55.0 deg
  • Tooth Count (NT) 1
  • Threads Per Inch Maximum (TPIX) 8
  • Insert Seat Size Code (SSC) 16
  • Insert Hand (IH) Right
  • Profile Distance Ey (PDY) mm 1.1
SKU: A0121015

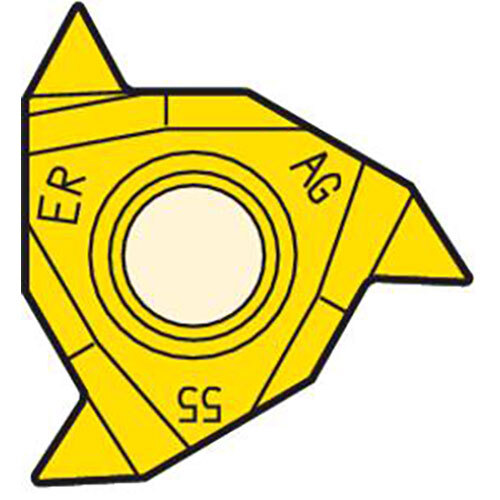

Seco External Snap-Tap® Thread Turning Insert 3.47 x 16.5mm Right 48-8 TPI CP500 V Profile 55° Thread A Chipbreaker 16ERAG55-A,CP500 Pack of 2
